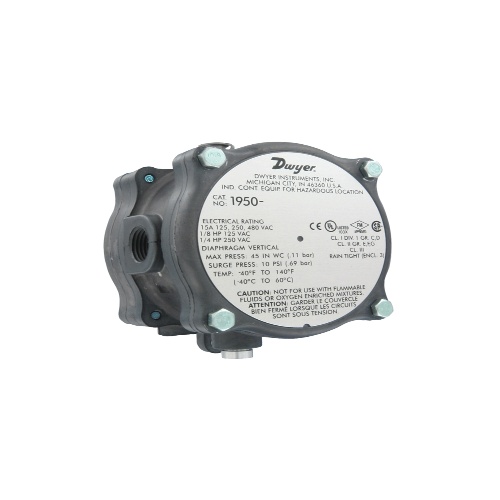

Dwyer 1950P-15-2F Explosion-Proof Differential Pressure Switch
Normally In Stock
Code: 567818
Dwyer 1950P-15-2F - Differential pressure switch, range 3-15 psid, approx. deadband @ min. set point 0.9, approx. deadband @ max. set point 0.9.
Condition: New
Usually ships Same Day or Next Day$488.96
Sale Price
$407.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 1950P-15-2F is an explosion-proof differential pressure switch suitable for air and non-combustible gases. It has a temperature range of -40 to 140°F and an enclosure rating of NEMA 3 (IP54) and NEMA 7 and 9. The switch has a single-pole double-throw (SPDT) configuration with a set point adjustment screw on top of the housing. It has 3 screw-type electrical connections and can handle a maximum pressure of 35 psi.
Specifications
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 7
(Instrument-Sensor) NEMA Protection
NEMA 9
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
Component
Pressure Switch
(Instrument-Sensor) Type
Explosion Proof
(Instrument-Sensor) Temperature Range
-40 - 140°F/-40 - 60°C
(Instrument-Sensor) Temperature Range
0 - 140°F/-17.8 - 60°C
(Instrument-Sensor) Temperature Range
-30 - 130°F/-34.4 - 54.4°C
Manufacturer
Dwyer Instruments
Features
Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation
External set point screw provides easy access that simplifies making adjustments without opening or disassembling enclosure
Easily accessible electrical connection simplifies the installation
