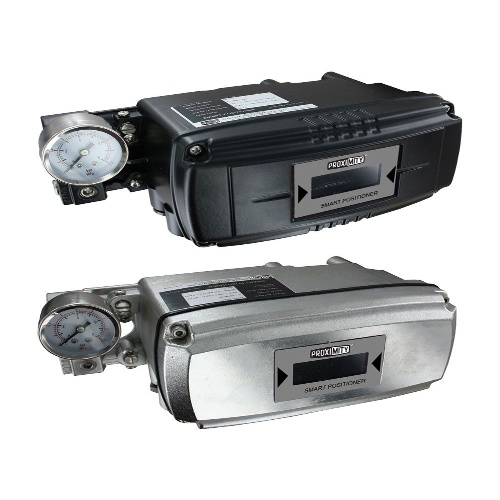

Dwyer 185EL-S1 Linear Smart Positioner
Normally In Stock
Code: 567805
Dwyer 185EL-S1 - Smart positioner, Hart® communication, single action, aluminum enclosure
Condition: New
Usually ships Same Day or Next Day$2009.03
Sale Price
$1674.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 185EL-S1 is a Linear Smart Positioner with a temperature range of -22 to 185°F (-30 to 85°C). It has a NEMA 4X (IP66) enclosure rating and is available in aluminum or 316SS housing. With a linearity of ±0.5% FS and repeatability of ±0.3% FS, it is suitable for hazardous locations. The positioner has a 1/2" NPT conduit connection and a 1/8" NPT connection. Its hysteresis is ±0.5% FS with an input impedance of 460 Ω max @ 20 mA DC. The sensitivity is ±0.2% FS and it has an air consumption of .0004 scfm (.01 LPM) at 20 psig (1.4 bar) supply. The flow capacity is 2.1 scfm (60 LPM) at 20 psig (1.4 bar) supply. It operates on a 4 to 20 mA DC input signal and 35 to 116 psi (2.4 to 8 bar) air supply. The air connections are 1/4" NPT and the stroke can range from 0.5 to 6" (10 to 150 mm) or 0 to 90°.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
Component
Positioning
Sub Component
Linear Smart Positioner
(Instrument-Sensor) Temperature Range
-22 - 185°F/-30 - 85°C
Manufacturer
Dwyer Instruments
