Code: 567766

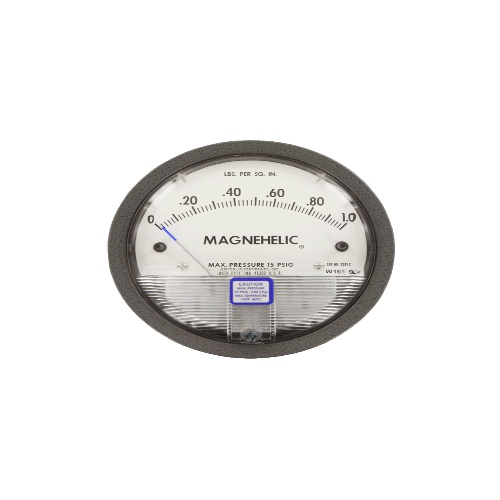

Dwyer 2201 Magnehelic® Differential Pressure Gauge
Normally In Stock
Dwyer 2201 - Differential pressure gauge, range 0-1 psi, minor divisions .02.
Condition: New
Usually ships Same Day or Next Day$105.14
Sale Price
$87.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 2201 Magnehelic® differential pressure gauge is a reliable and accurate device for measuring pressure in air and non-combustible gases. It has an IP67 enclosure rating and a die-cast aluminum case and bezel. This gauge is suitable for temperatures ranging from 20 to 140°F (-6.67 to 60°C) and has an accuracy of ±2% (±1% for -HA model) throughout its range. The gauge features a 4" diameter dial face and can withstand pressures from -20 in Hg to 15 psig. It comes with standard accessories such as pressure taps and flush mounting adapters.
Specifications
(Instrument-Sensor) IP Protection
IP67
Component
Differential Pressure Gauge
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
(Instrument-Sensor) Temperature Range
20 - 140°F/-6.67 - 60°C
(Instrument-Sensor) Temperature Range
-20°F/-28°C
(Instrument-Sensor) Measurement Accuracy
2.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
(Instrument-Sensor) Measurement Accuracy
4.0%
Manufacturer
Dwyer Instruments
Features
Easy to read gage through undistorted plastic face permits viewing from far away
Patented design provides quick response to pressure changes means no delay in assessing critical situations
Durable and rugged housing and high-quality components combine to provide longservice life and minimized down-time
High accuracy option is twice as accurate as the standard Magnehelic® gage
Durable and rugged housing and high-quality components combine to provide longservice life and minimized down-time
High accuracy option is twice as accurate as the standard Magnehelic® gage
