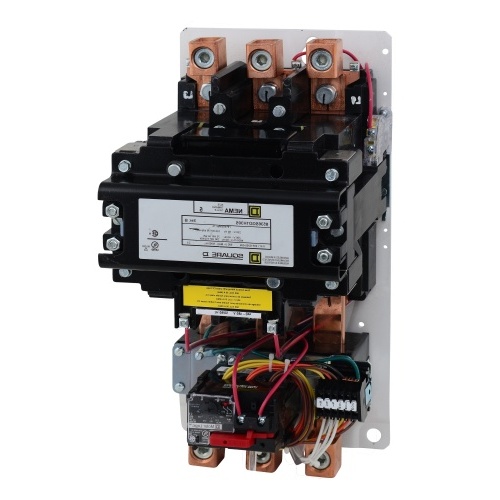

Schneider 8536SGO1V06H30S Square D Nema Motor Starter 480 VAC Coil 3 Poles
Normally In Stock
Code: 56761
Schneider 8536SGO1V06H30S Square D Nema Motor Starter 480 VAC Coil 3 Poles Size 5 270 Amp with Open enclosure. Runs 100 @ 240 V 3 Phase and 200 @ 480 V 3 Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making future fixes e
Condition: New
Usually ships Same Day or Next Day$11672.71
Sale Price
$9727.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NEMA Contactor, Type S, reversing, Size 3, 90A, 3 pole, 3 Phase, horizontal, 550/600 VAC 50/60 Hz coil, open style
Specifications
Starter Enclosure Type
Open
Starter NEMA Size
5
Starter Coil Voltage
480 VAC
Starter HP
100 HP @ 240 VAC 3 Phase
Starter HP
200 HP @ 575 VAC 3 Phase
Starter HP
200 HP @ 480VAC 3 Phase
Starter HP
75 HP @ 208 VAC 3 Phase
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Non-Reversing Starters
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
270 Amp
Manufacturer
Square D
Starter Actions
Type S
Features
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors
Type S motor starters have ratings up to 810 amperes
This 3 pole NEMA Size 5 non-reversing starter has a 270 ampere rating
This NEMA Size 5 motor starter has 3 phase ratings of 75 HP at 200 VAC, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC
This non-reversing NEMA motor starter has a Motor Logic overload relay with a 90A to 270A range to sense over current conditions
This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 440/480 VAC 50/60 Hz operating coil wired for separate control
This NEMA starter is an open device without an enclosure
This starter is 17.56 inches tall, 8.56 inches wide and 8.75 inches deep
A wide variety of accessories are available for Type S starters
Type S non-reversing NEMA motor starters are UL listed and CSA certified.
