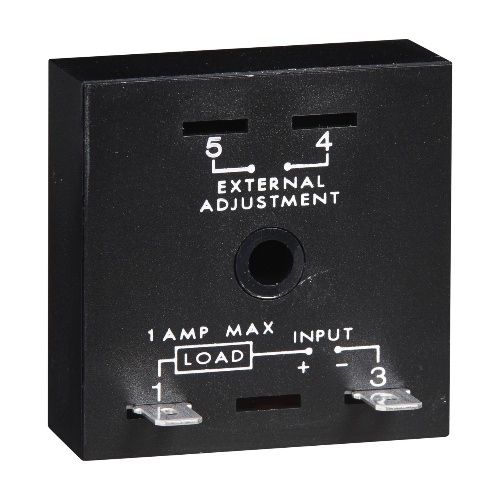

Littelfuse TSD7424 is an encapsulated time delay relay with a power consumption of ≤2 VA. It has a steady state output load rating of 1 A and can handle 10 A inrush @ 45°C. The termination type is 0.25 in. (6.35 mm) male quick connect terminals. It operates at an input AC line frequency of 50/60 Hz with an input tolerance of ±20%. The humidity rating is 95% relative non-condensing. It offers a repeat accuracy of ±0.5% or 20 ms, whichever is greater. The insulation resistance is ≥100. The setpoint vs ambient temperature and operating voltage is ≤±2%. It has a time delay tolerance of ≤±10% and a reset time of ≤150 ms. The dielectric breakdown is ≥2000V between terminals and mounting surface. The output voltage drop is ≤2.5 V @ 1 A. It utilizes digital time delay type and has a recycle time of ≤400 ms. The open state leakage current is ≅5 @230 V ac. It requires a minimum output load current of 40 A.
