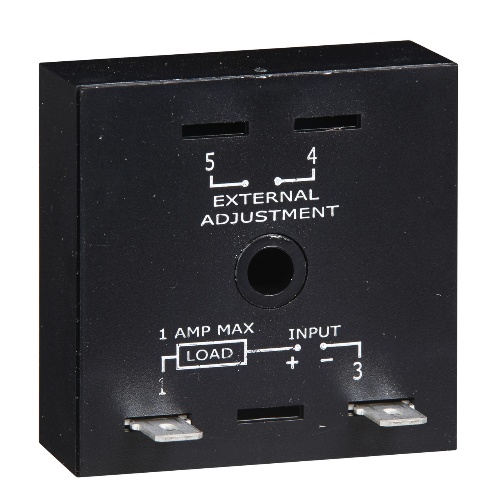

Littelfuse TS1612 is an encapsulated time delay relay with a 1 A steady state output load rating and 10 A inrush at 60°C. It features 0.25 in. male quick connect terminals and has a ±20% input tolerance for AC line frequency of 50/60 Hz. With ±2% or 20 ms repeat accuracy, it also has a humidity resistance of 95% relative non-condensing. The relay has a ≤±10% setpoint vs ambient temperature and operating voltage with a dielectric breakdown of ≥2000V terminals to mounting surface. It has an approximate output voltage drop of 2.5V at 1A and a time delay tolerance of ≤±10%. The recycle time is ≤16 ms after timing and 0.1% of max. time delay or 75 ms during timing. The minimum output holding current is 5 mA.
