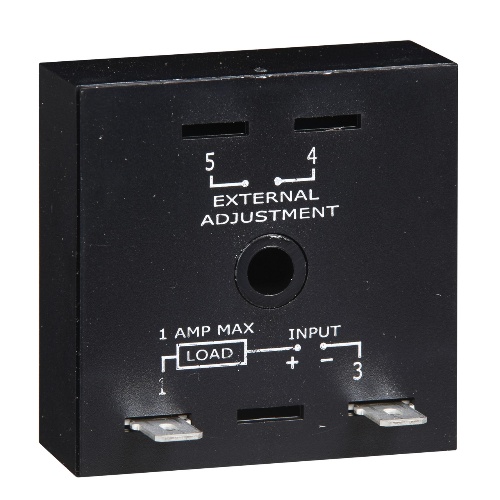

Littelfuse TS1424 is an encapsulated analog time delay relay with a 1A steady state output load rating (10A inrush @ 60°C). It features 0.25 in. male quick connect terminals, operates at 50/60Hz with a ±20% input tolerance, and has a humidity rating of 95%. With a repeat accuracy of ±2% or 20ms, it offers reliable performance. The relay has a minimum output holding current of 5mA and a time delay tolerance of ≤±10%. It also has a dielectric breakdown of ≥2000V terminals to mounting surface and an output voltage drop of ≅2.5V @ 1A. Its setpoint remains stable within ±10% against ambient temperature and operating voltage. With a recycle time of ≤16ms and during timing at 0.1% of max. time delay or 75ms (whichever is greater), it ensures high efficiency.
