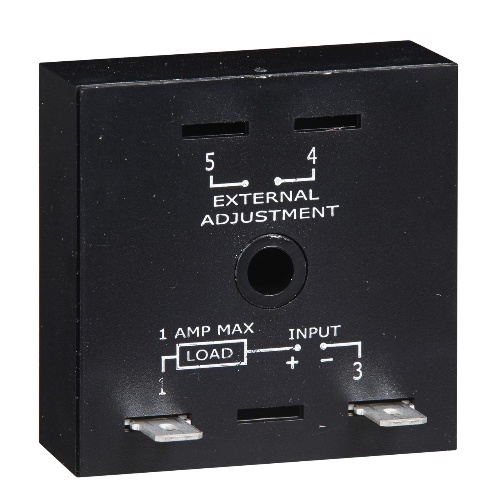

Littelfuse TS1423 is an encapsulated analog time-delay relay with 0.25 in. male quick connect terminals. It has a maximum output load rating of 1A steady state and 10A inrush at 60°C. It operates at an input AC line frequency of 50/60Hz with a tolerance of ±20%. The relay has a humidity rating of 95% relative non-condensing and offers a repeat accuracy of ±2% or 20ms, whichever is greater. It provides insulation resistance of ≥100 and has a setpoint vs ambient temperature and operating voltage variation of ≤±10%. It offers a time delay tolerance of ≤±10% and dielectric breakdown of ≥2000V between terminals and mounting surface. The output voltage drop is approximately 2.5V at 1A. The recycle time is ≤16ms for after timing and 0.1% of max. time delay or 75ms, whichever is greater, during timing. It has a minimum output holding current of 5mA.
