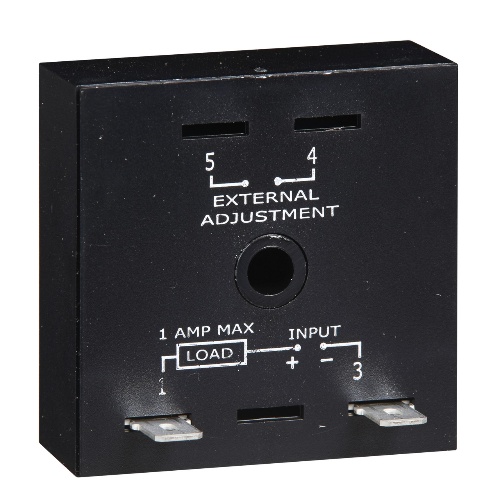

Littelfuse TS1422 is a compact analog time delay relay designed for industrial applications. It features a 1 A steady state output load rating and 10 A inrush capability at 60°C. The termination type is 0.25 in. male quick connect terminals. With input tolerance of ±20% and repeat accuracy of ±2% or 20ms, it ensures reliable operation. The encapsulated circuitry, dielectric breakdown of ≥2000V, and insulation resistance of ≥100MOhm provide excellent safety. The time delay type is analog, with a time delay tolerance of ≤±10%. Its output voltage drop is around 2.5V @ 1A, and it requires a minimum output holding current of 5mA.
