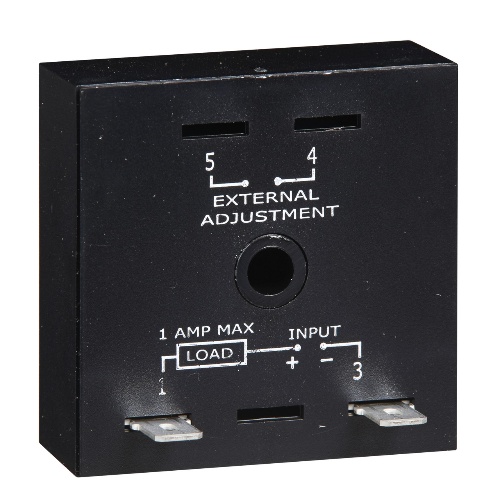

Littelfuse TS1416 is an encapsulated analog time delay relay with a steady state output load rating of 1A and a 10A inrush at 60°C. It features 0.25 in. (6.35 mm) male quick connect terminals for easy termination. With an input tolerance of ±20%, it operates reliably at a frequency of 50/60Hz. Its repeat accuracy is ±2% or 20ms and insulation resistance is ≥100. The time delay tolerance is ≤±10% and it has a dielectric breakdown of ≥2000V. The output voltage drop is ≅2.5V at 1A. The TS1416 has a minimum output holding current of 5mA and a recycle time of ≤16ms.
