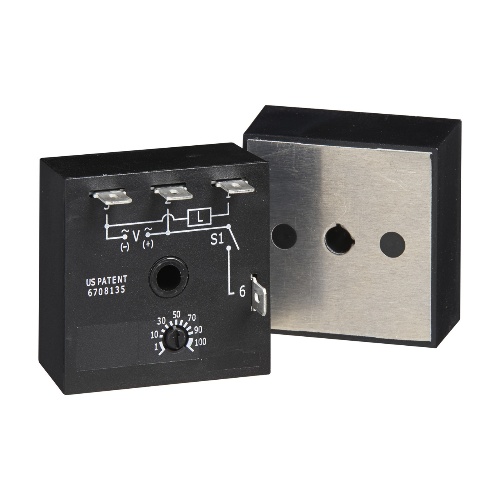

Littelfuse THDS431C is a compact, encapsulated time delay relay with a maximum output load rating of 20 A steady state and 200 A inrush. It features 0.25 in. (6.35 mm) male quick connect terminals for easy installation. With an input tolerance of ±20% and a repeat accuracy of ±0.5% or 20 ms, it offers reliable and precise performance. This relay has a power consumption of ≤2 VA and a reset time of ≤150 ms. It can withstand a dielectric breakdown of ≥2000V terminals to mounting surface, ensuring safe operation. The THDS431C is also equipped with onboard adjustable undervoltage trip voltage and has a minimum output load current of 100 A.
