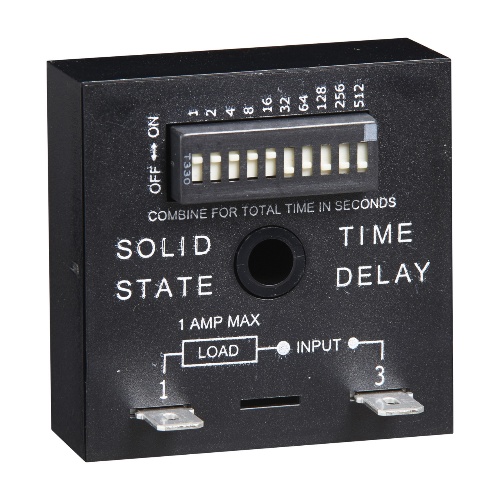

Littelfuse TDU3003A Time Delay Relay - 120-277 Volt, Normally Open
Normally In Stock
Code: 566431
Littelfuse TDU3003A - Encapsulated Solid-State Delay-On-Make Timer Series - 120-277 Volt - Surface mount with 1 #10 (M5 x 0.8) screw - 1 A steady state; 10 A inrush @ 60°C (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$69.44
Sale Price
$57.87
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse TDU3003A is an encapsulated time delay relay with a steady state output load rating of 1 A, and 10 A inrush at 60°C. It has 0.25 in. male quick connect terminals and operates at an input AC line frequency of 50/60 Hz with a ±20% tolerance. The relay has a humidity resistance of 95% relative non-condensing and a repeat accuracy of ±0.5% or 20 ms. It offers insulation resistance of ≥100 and a setpoint vs ambient temperature and operating voltage tolerance of ≤±5%. The dielectric breakdown is ≥2000V terminals to mounting surface. The output voltage drop is ≅2.5 V at 1 A. The time delay type is digital with a tolerance of ±10%. The recycle time is ≤150 ms, and the minimum output holding current is ≤40 mA.
Specifications
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
120-277 Volt
Relay Mounting
Surface Mount
Relay Throws
Normally Open
Sub Component
Delay On Make
Relay Timing Range
1 - 1023 S
