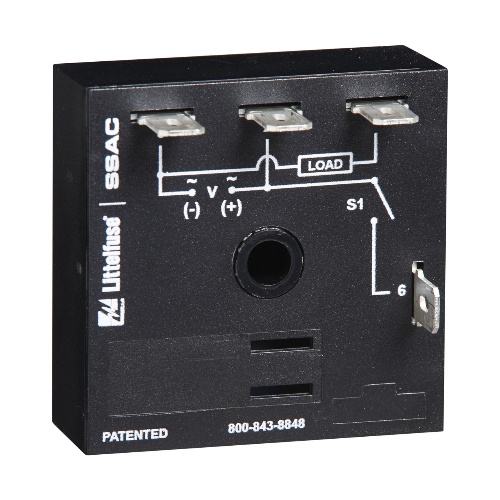

Littelfuse KSDS420 is an encapsulated relay with a male quick connect termination. It has an output load rating of 1A steady state and 10A inrush for 16ms. The input AC line frequency is 50/60Hz with a tolerance of ±20%. The humidity is 95% relative non-condensing. It has a repeat accuracy of ±0.5% or 20ms, whichever is greater. The insulation resistance is ≥100. Its setpoint vs ambient temperature and operating voltage is ≤±10%. The power consumption is ≤2VA and the time delay tolerance is ≤±5%. It has a reset time of ≤150ms and a dielectric breakdown of ≥2000V terminals to mounting surface. The output voltage drop is ≅2.5V at 1A, and the open state leakage current is ≅5A at 230V AC. The initiate time is ≤20ms.
