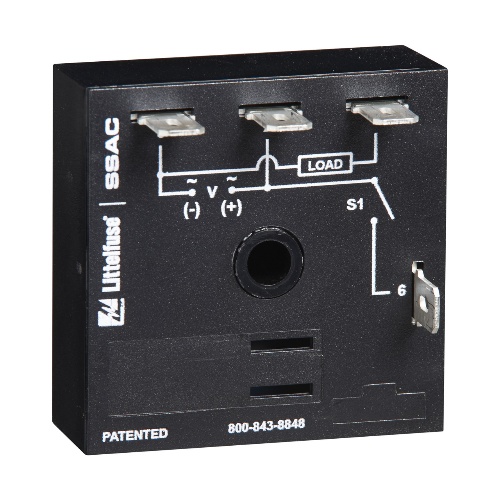

Littelfuse KSDS415M is an encapsulated circuitry device with a 0.25 in. male quick connect termination type. It has an output load rating of 1A steady state and 10A inrush for 16ms. The input AC line frequency is 50/60Hz with a tolerance of ±20%. It has a humidity rating of 95% non-condensing and a repeat accuracy of ±0.5% or 20ms whichever is greater. The insulation resistance is ≥100, and the setpoint vs ambient temperature and operating voltage has a tolerance of ≤±10%. The power consumption is ≤2VA, and the time delay tolerance is ≤±5%. The reset time is ≤150ms, and the dielectric breakdown is ≥2000V between terminals and mounting surface. The output voltage drop is ≅2.5V @ 1A, and the open state leakage current is ≅5 @230V ac. The initiate time is ≤20ms.
