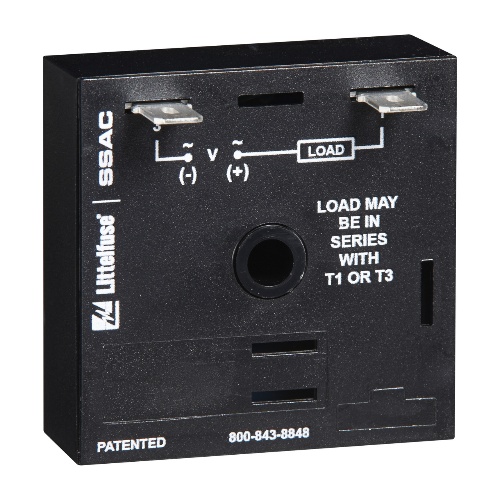

Littelfuse KSD16130S is an encapsulated relay with a 1A steady state output load rating and 10A inrush at 60°C. It features 0.25 in. male quick connect terminals for easy termination. Operating at 50/60Hz with a ±20% input tolerance, it offers a humidity rating of 95% non-condensing. With a repeat accuracy of ±0.5%, insulation resistance of ≥100, and time delay tolerance of ±5%, it ensures reliable and precise performance. The relay has a dielectric breakdown of ≥2000V and a low output voltage drop of ≅2.5V @ 1A. With a recycle time of ≤150ms and open state leakage current of ≅7A @230V ac, it provides efficient and safe operation. The minimum output holding current is ≤40mA.
