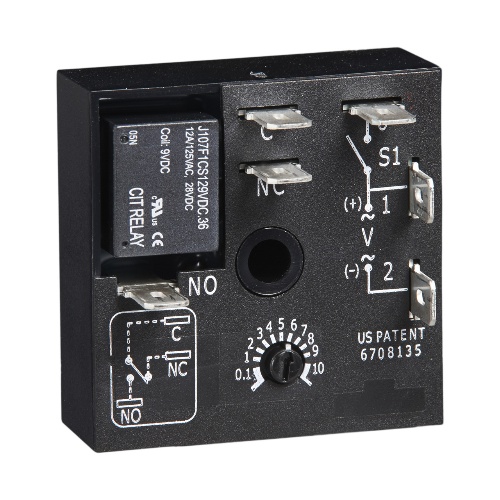

Littelfuse KRDS424 is a compact and reliable time delay relay with a 10 A resistive output load rating at 125 V ac. It also supports 5 A resistive load at 230 V ac and 28 V dc, and 1/4 hp at 125 V ac. The relay features a 0.25 in. male quick connect terminal for easy termination. With a repeat accuracy of ±0.5% or 20 ms, it ensures precise and consistent performance. The encapsulated circuitry and high insulation resistance of ≥100 provide enhanced safety and durability. Other notable features include a power consumption of ≤2 VA, a time delay tolerance of ≤±5%, and a life expectancy of 1 x 10⁵ electrical cycles and 1 x 10⁷ mechanical cycles.
