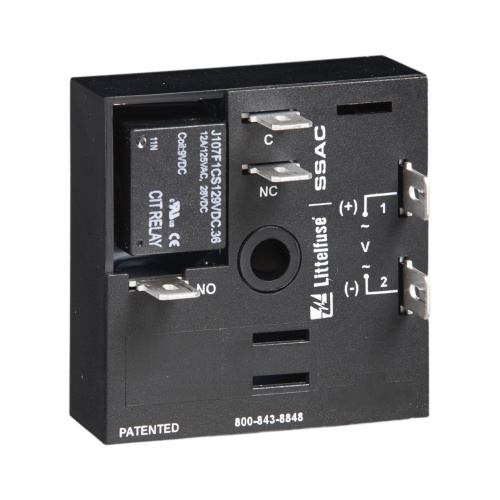

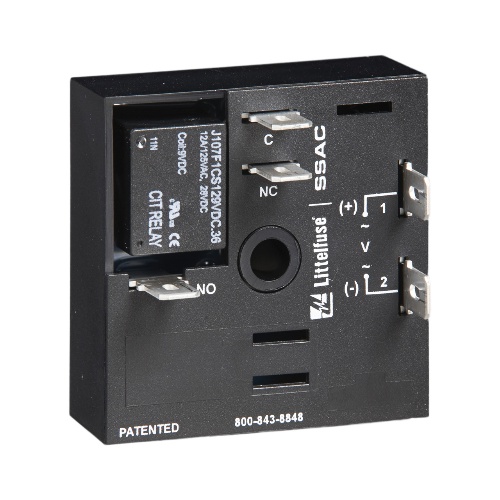

Littelfuse KRDM4110S is an encapsulated circuitry product with a termination type of 0.25 inch male quick connect terminals. It has an output load rating of 10 A resistive at 125 V ac and 5 A resistive at 230 V ac and 28 V dc. The input AC line frequency is 50/60 Hz with a tolerance of -20% to 10%. It has a humidity resistance of 95% relative non-condensing and a repeat accuracy of ±0.5% or 20 ms whichever is greater. The insulation resistance is ≥100 and the setpoint vs ambient temperature and operating voltage is ≤±5%. It has a power consumption of ≤2 VA and a time delay tolerance of ±5%. The life expectancy is electrical: 1 x 10⁵ and mechanical: 1 x 10⁷. The recycle time is ≤150 ms and the maximum switching voltage is 250 V.
