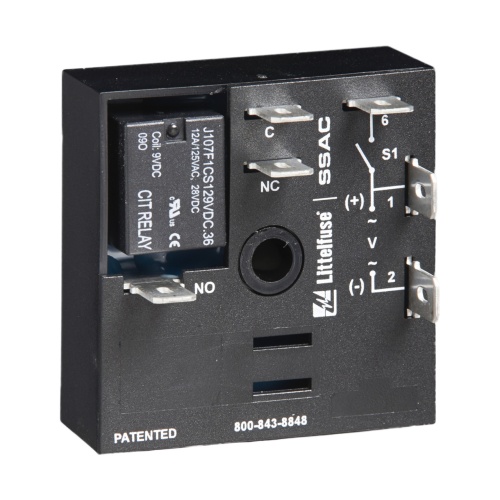

Littelfuse KRDB423 Time Delay Relay - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 566220
Littelfuse KRDB423 - Delay On Break Timer Series - 120 Volt - Surface mount with 1 #10 (M5 x 0.8) screw - 10 A resistive @ 125 V ac; 5 A resistive @ 230 V ac and 28 V dc; 1/4 hp @ 125 V ac (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$107.75
Sale Price
$89.79
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse KRDB423 is an encapsulated time delay relay with a switching voltage of 250V. It has a load rating of 10 A resistive @ 125 V ac, 5 A resistive @ 230 V ac and 28 V dc, and 1/4 hp @ 125 V ac. It features 0.25 in. male quick connect terminals, ±0.5% or 20 ms repeat accuracy, and a maximum power consumption of 2 VA. With a microcontroller and watchdog circuitry, it offers a ≤150 ms reset time and an initiate time of ≤40 ms. Its electrical life is 1 x 10⁵ and mechanical life is 1 x 10⁷.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
120 Volt
Relay Mounting
Surface Mount
Relay Timing Range
0.1 - 10 M
Sub Component
Delay On Break
Features
Microcontroller based
Isolated, 10A, SPDT output contacts
Encapsulated
Compact, low cost design measuring 2 in. (50.8mm) square
