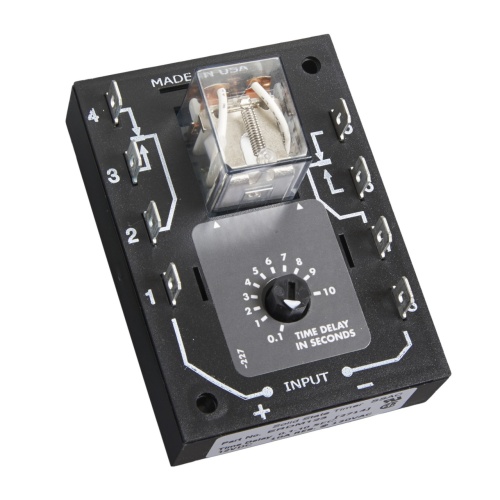

Littelfuse ERDM4130S is a highly reliable electronic timer with a load rating of 10A resistive at 120/240VAC and 28VDC. It features 0.25-inch male quick-connect terminals for easy installation. With an input AC line frequency of 50/60Hz and a tolerance range of -20% to 10%, it provides accurate and precise timing. The time delay tolerance is ±10% and the repeat accuracy is ±0.5%. It is designed for a long life with a full load rating of 1 x 10⁶ cycles and mechanical endurance of 1 x 10⁷ cycles. The timer has a fast recycle time of ≤150ms and DC units are reverse polarity protected. It is a fixed adjustment type timer ideal for various applications.
