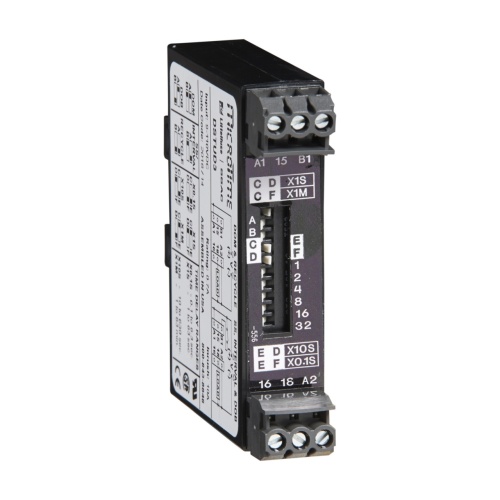

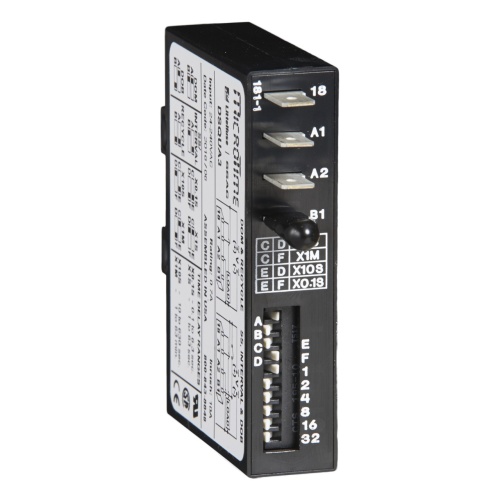

Littelfuse DSTUA3 Time Delay Relay - 24-240 Volt, Normally Open
Normally In Stock
Code: 566133
Littelfuse DSTUA3 - Multifunction Time Delay Relay Series - 24-240 Volt - DIN rail: Snap on to 32 mm DIN 1 and 35 mm DIN 3 rail; Surface mount: 2 #6 (M3.5 x 0.6) screws or quick mount fasteners - 0.7 A steady state; 10 A inrush (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$193.24
Sale Price
$161.03
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse DSTUA3 is an encapsulated circuitry time delay relay. It features a 0.7 A steady state and 10 A inrush output load rating, with push-on terminal blocks for up to #14 AWG wire. The input AC line frequency can be set to 50 or 60 Hz, with an input tolerance of -20% to 10%. The device offers surge protection according to IEEE C62.41-1991 Level A standards, and has a reset time of ≤300 ms. With a repeat accuracy of ±0.1% or ±20 ms, and a setpoint vs ambient temperature and operating voltage accuracy of ≤±2% or 50 ms, the DSTUA3 provides reliable and precise time delay control. The product also includes a microcontroller-based time delay type with a ceramic resonator and watchdog circuitry, and an initiate time of ≤32 ms for single shot and delay-on-break operations. The device is compatible with 6 switches for time delay adjustment, and 2 switches for selecting 1 of 4 multipliers. With a dielectric breakdown of ≥2000V terminals to mounting surface and an output voltage drop of 2.5V @ 0.7A, the DSTUA3 is a versatile and dependable time delay relay for various applications.
Specifications
Relay Mounting
Din Rail
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
24-240 Volt
Relay Throws
Normally Open
Sub Component
Multifunction
Relay Timing Range
0.1 - 6.3 S
