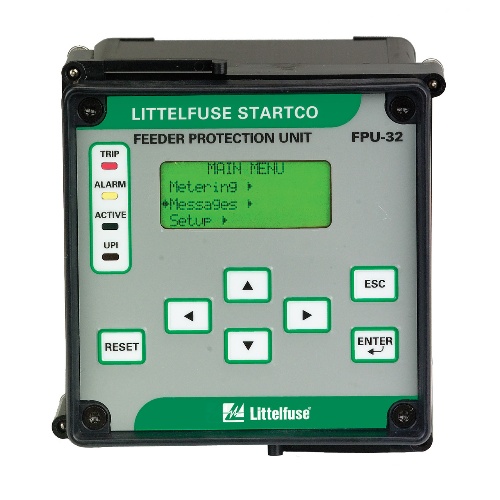

Littelfuse FPU-32-01-00 Feeder Protection Unit W/ Rs-485
Normally In Stock
Code: 565793
Littelfuse FPU-32-01-00 - FPU-32 Series - 65-265 Volt, 80-275 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$6052.28
Sale Price
$5043.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse FPU-32-01-00 is a conformally coated frequency protection relay with 3 Form C relay contacts for fail-safe and non-fail-safe operation. It supports IEEE device numbers 26, 46, 49, 50, 50G, 50N, 51, 51G, 51N, 74, and 86. With front-panel or remote reset options, it features standard harmonic filtering, various communication options, and a temperature sensor. Additional features include a single digital input and a 4-20 mA analog output. It operates with supply voltages of 65-265 VAC and 80-275 VDC, and GF trip levels range from 5-100% of CT-Primary Rating.
Specifications
Manufacturer
Littelfuse
Component
Feeder Protection
Coil Voltage Rating
65-265 Volt
Coil Voltage Rating
80-275 Volt (DC)
Features
Eight functions to protect against overcurrent, earthfaults, and phase loss
standard LSIG protection plus unbalance and thermal protection
IEC and IEEE overcurrent protection curves to coordinate with upstream and downstream devices
Thermal element active below overcurrent pickup
Definite- and inverse-time ground-fault protection
