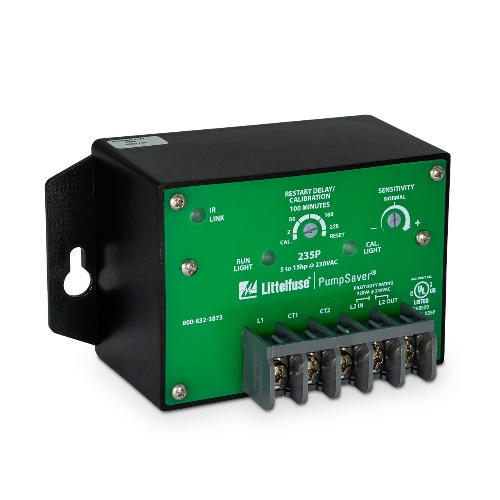

Littelfuse 235P is a versatile power protection device with a load rating of 720 VA @ 240 Volts. It has a torque termination type and is suitable for solid or stranded wire of 10 - 22 AWG. The input AC line frequency is 50 / 60 Hz, with a trip delay range of 5 s for overcurrent and 4 s for dry-well. The maximum input power is 5. It has a restart delay range of 2 s for over/under voltage and manual reset for other faults. Undervoltage reset voltage is 190 Volts, and overvoltage trip voltage is 265 Volts. It has a rapid cycle timer of 4 restarts in a 60 s period. The overcurrent trip class is 125% of the calibration point, and underload is adjustable from 70 to 90% of calibrated run power. It can handle an input load range of 5 - 15 hp (external current transformer required).
