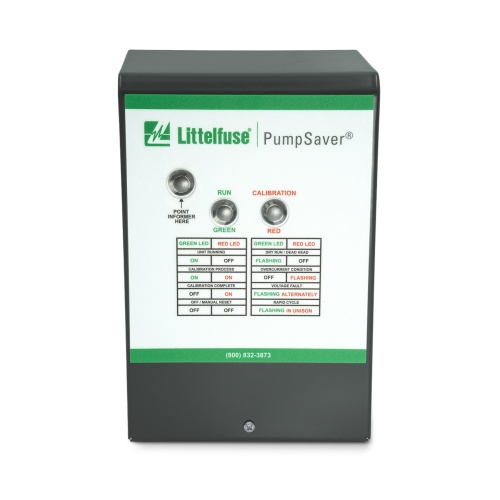

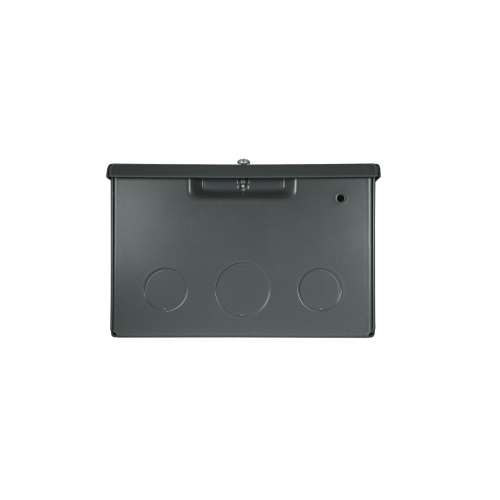

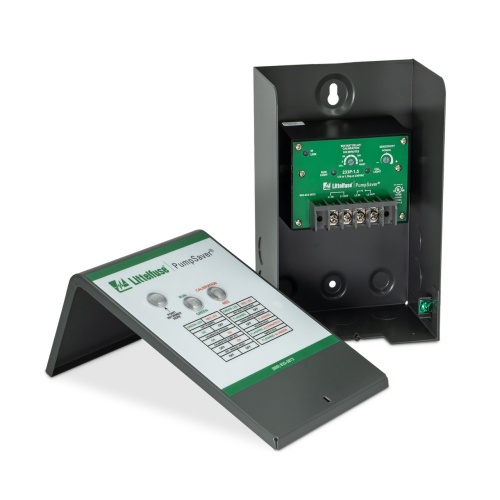

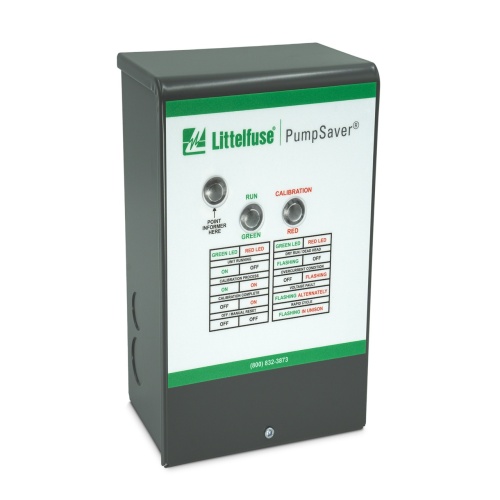

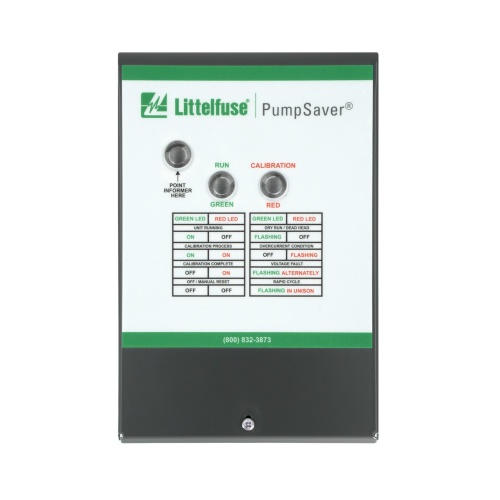

Littelfuse 233P-1.5-ENCL is a versatile enclosure designed to protect electrical equipment. With an output load rating of 1.5 hp at 240 Volts and a maximum current of 10 A, it offers reliable performance. Its torque termination ensures secure connections while the input AC line frequency of 50/60 Hz accommodates various power sources. The trip delay ranges from 4 to 5 seconds, and the restart delay ranges from 2 to 225 milliseconds depending on the fault. It features adjustable undervoltage reset and overvoltage trip voltages. The rapid cycle timer allows for 4 restarts in a 60-second period. The overcurrent trip class is set at 125% of the calibration point, and the underload can be adjusted from 70 to 90% of the calibrated run power. Perfect for a load range of 1/3 to 1.5 hp.
