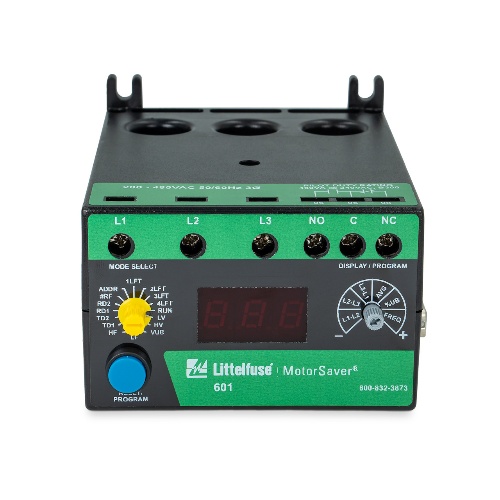

Littelfuse 601 provides reliable protection with a Pilot Duty output load rating of 480 VA @ 240 Volts and a General Purpose load rating of 10 A @ 240 Volts. It features a torque termination type of 7 in-lbs and operates at an input AC line frequency of 50/60 Hz. With a wide humidity range of 10-95%, it is ideal for various environments. The repeat accuracy is ±0.5% and the trip delay range is 1-50 s, providing effective protection against faults. It has a maximum input power of 5 and a restart delay range of 2-500 s. The undervoltage reset voltage is 103% of the LV setting, while the voltage unbalance reset is UB Setting -1%. The overvoltage reset voltage is 97% of the HV setting. It is IP20 and NEMA 1 (finger safe) rated and has a timing accuracy of 5% ±1 s. The rapid cycle timer ranges from 0 to 500 s and it has an address range of A01 to A99. The voltage accuracy is ±1% and the over/under frequency range is low: 35 Hz - HF setting, high: LF setting - 75 Hz.
