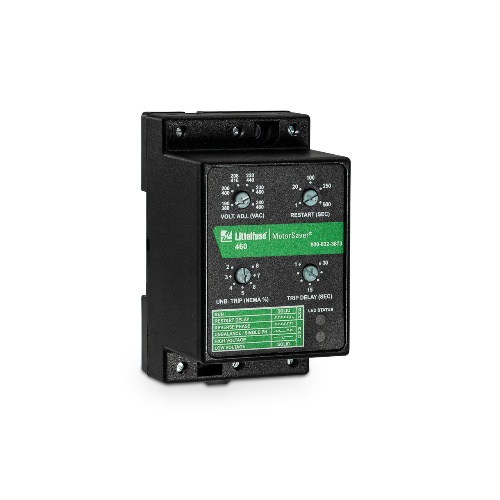

Littelfuse 460 is a versatile product with a pilot duty output load rating of 480 VA at 240 Volts B300 and a general purpose rating of 10 A at 240 Volts. It has a torque termination type of 6 in-lbs and is compatible with both stranded and solid wire sizes 12-20 AWG. The input AC line frequency can be either 50 or 60 Hz, with the former increasing all delay timers by 20%. It has a wide humidity range of 10-95% non-condensing and offers undervoltage trip voltage at 90%. The trip delay range is adjustable from 1-30 s for under/over and unbalance voltage, while single-phase faults (>25%UB) have a fixed delay of 1 s. The maximum input power is 6, and the restart delay is adjustable from 1-500 s. Undervoltage reset voltage is set at 93%, and voltage unbalance trip point can be adjusted from 2-8%. Overvoltage trip voltage is set at 110%, and voltage unbalance reset is calculated as the trip setting minus 1% (5-8%) or trip setting minus 0.5% (2-4%). It offers accurate trip point accuracy of ±1% and an overvoltage reset voltage of 107%. The protection class is IP20 and NEMA 1 (finger safe).
