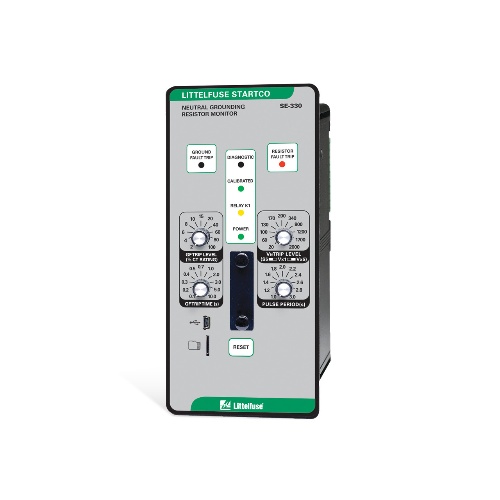

Littelfuse SE-330HV-21-01 NGR Monitor Hv Lvps Devicenet NC K4
Normally In Stock
Code: 565664
Littelfuse SE-330HV-21-01 - SE-330HV Series – Neutral-Grounding-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$8733.36
Sale Price
$7277.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330HV-21-01 is a conformally coated device suitable for resistance grounded AC systems. With multiple relay contacts configurations and fail-safe/non fail-safe operation, it offers IEEE device numbers and a range of reset options. It features standard harmonic filtering, GF trip times from 0.1 to 10.0 seconds, and supply voltage options. With RF trip level options and communication interfaces, it provides flexibility and reliability. New revision available now.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
Continuous NGR monitoring
Shorted NGR detection
Ground-fault detection
Adjustable pickup (2–100 %)
Adjustable time delay (0.1–10 s)
Universal CT compatibility
Programmable output contacts
Selectable contact operating mode
Analog output (4–20 mA)
Pulsing output (SE-330 only)
Detects resistor failure within seconds, reduces transient-overvoltage risk, removes risk of ground-fault detection failure
Detects a ground fault on the neutral that could bypass the resistor, ensures fault current is not higher than expected
Main or backup protection to detect a ground fault anywhere on the monitored system
Select greatest sensitivity without false operation, adjustable in 1 % increments
Adjustable trip delay allows quick protection and system coordination
