Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

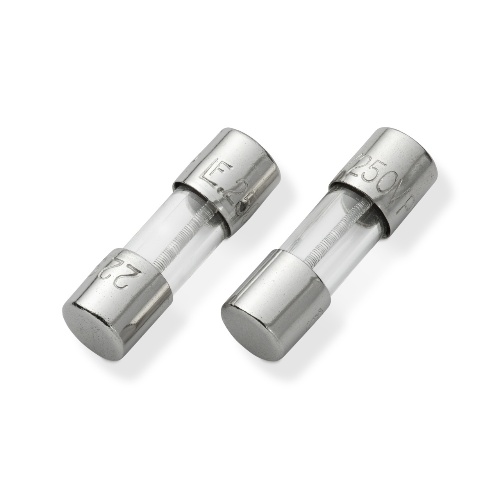

Littelfuse 02302.25MXP 2AG (5x15mm) Fuse - 2.25 Amp, 250 VAC
Normally In Stock
Code: 563892
Littelfuse 02302.25MXP 2AG (5x15mm) Fuse - 2.25 Amp, 250 VAC (MUST ORDER IN PACKS OF 1000)
Condition: New
Usually ships same day or next day$5.92
Sale Price
$4.93
MUST BUY IN PACKS OF 1000
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

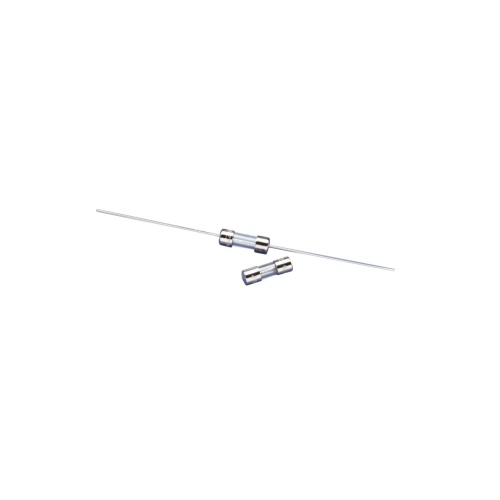

Littelfuse 02302.25MXP - Fuse 229 and 230 The 2AG Slo-Blo® Fuses are available in cartridge form or with axial leads. 2AG Fuses providing the same performance characteristics as their 3AG counterpart, while occupying one-third the space. Features: 229 series 2AG fuses have time-delay of 313 series 3AG fuses in less than one-third of the space.-They provide superior protection for inductive loads such as motors, transformers, and solenoids.-Use whenever time-delay fuses are indicated.-An indicating version is also available. 2AG indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies.-Guesswork and time-consuming circuit testing is eliminated.-This unique design offers the same quality performance characteristics as the standard 2AG fuse design -
Specifications
Fuse Voltage Rating
250 Volts
Manufacturer
Littelfuse
Fuse Amperage Rating
2.25 Amp
Component
Fuse
Fuse Response Time
Slo-Blo/Time Lag (T)/Time Delay
Fuse Protection Type
Cartridge Fuse
Fuse Type (UL)
2AG (5X15mm)
Features
Available in cartridge and axial lead form, and a wide range of lead forming dimension and packaging options
In accordance with UL Standard 248-14
RoHS compliant and Lead-free
Tripped fuse indicating option (add suffix ‘S’ to part number)
Fuses are available for board washable with the additional sealing process (add suffix ‘A’ to part number)
Sleeved fuse option available (contact Littelfuse for additional information)
