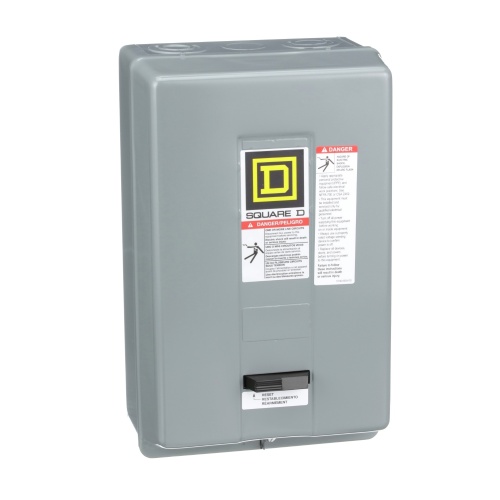

Schneider 8536SDG6V03 Square D Nema Motor Starter 240 VAC Coil 2 Poles
Normally In Stock
Code: 56385
Schneider 8536SDG6V03 Square D Nema Motor Starter 240 VAC Coil 2 Poles Size 2 45 Amp with NEMA 1 enclosure. Runs 3 @ 120 V Single Phase and 7.5 @ 230 V Single Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making future fi
Condition: New
Usually ships Same Day or Next Day$1233.43
Sale Price
$1027.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TeSys GV2 Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 1 to 1.6 A, screw clamp
Specifications
Starter NEMA Size
2
Starter Enclosure Type
NEMA 1
Starter Coil Voltage
240 VAC
Starter HP
3 HP @ 120 VAC 1 Phase
Starter HP
7.5 HP @ 230 VAC 1 Phase
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Non-Reversing Starters
Manufacturer
Schneider Electric
Starter Poles
Two Pole
Starter Amperage
45 Amp
Manufacturer
Square D
Starter Actions
Type S
Features
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors
Type S motor starters have ratings up to 810 amperes
This 2 pole NEMA Size 2 non-reversing starter has a 45 ampere rating
This NEMA Size 2 motor starter has single phase ratings of 3 HP at 115 VAC and 7.5 HP at 23075 VAC
This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control

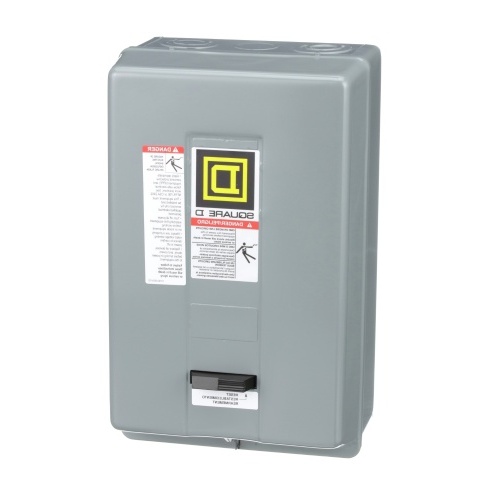

A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter
Enclosure is 12.69 inches tall, 7.81 inches wide and 6.31 inches deep
A wide variety of accessories are available for Type S starters
Type S non-reversing NEMA motor starters are UL listed and CSA certified.
