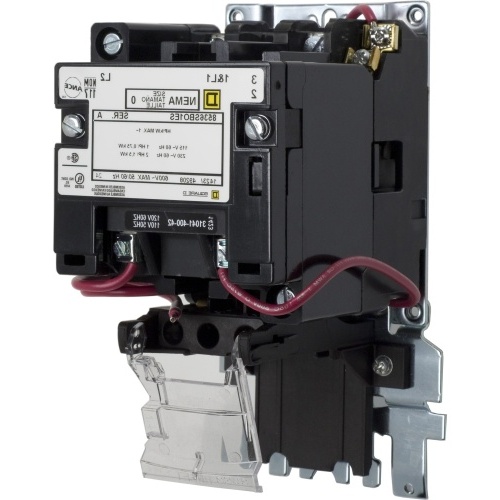

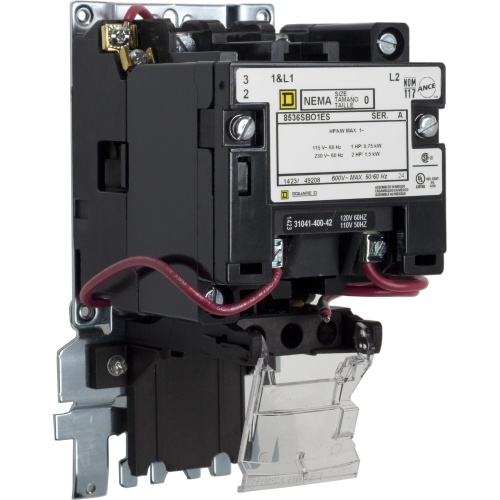

Schneider 8536SBO1V02ES Square D Nema Motor Starter 120 VAC Coil 2 Poles
Normally In Stock
Code: 55847
Schneider 8536SBO1V02ES Square D Nema Motor Starter 120 VAC Coil 2 Poles Size 0 18 Amp with Open enclosure. Runs 1 @ 120 V Single Phase and 2 @ 230 V Single Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making future fixe
Condition: New
Usually ships Same Day or Next Day$547.82
Sale Price
$456.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
fuse clip kit, class R fuse, 250V, 60A, NEMA size 0-1 or 30A lighting contactor
Specifications
Starter NEMA Size
0
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter Actions
Non-Reversing
Starter HP
1 HP @ 120 VAC 1 Phase
Starter HP
2 HP @230 VAC 1 Phase
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Non-Reversing Starters
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Poles
Two Pole
Starter Amperage
18 Amp
Manufacturer
Square D
Features
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors
Type S motor starters have ratings up to 810 amperes
This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating
This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC
This non-reversing NEMA motor starter has an adapted bimetallic overload relay to sense over current conditions
This NEMA starter has a 65 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control
This NEMA starter is an open device without an enclosure
This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep
A wide variety of accessories are available for Type S starters
Type S non-reversing NEMA motor starters are UL listed and CSA certified.
