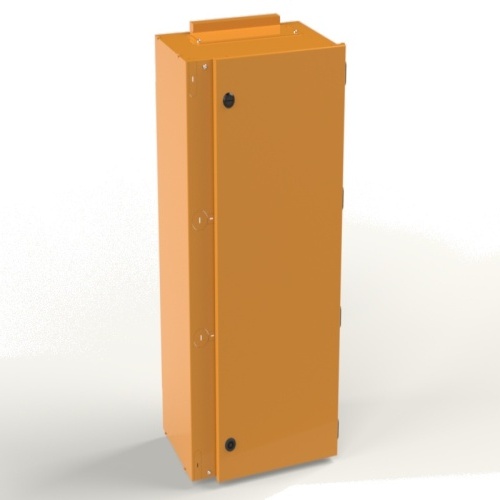

Saginaw SCE-400AFSD - Arc Flash Enclosure
Normally In Stock
Code: 556845
Saginaw SCE-400AFSD - Arc Flash Enclosure - Orange texture powder coat. - NEMA 1 - 32" x 15" x 9.75" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$374.72
Sale Price
$312.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Saginaw SCE-400AFSD - Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used within an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components when the Internal Disconnect Enclosure cover is closed.The Internal Disconnect Enclosure can be easily incorporated into a new system or added to a pre-existing system on variable depth or cable operated disconnects. Aids in achieving compliance with NFPA 70E by concealing main power supply.
Features
Application: Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used within an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components when the Internal Disconnect Enclosure cover is closed.The Internal Disconnect Enclosure can be easily incorporated into a new system or added to a pre-existing system on variable depth or cable operated disconnects. Aids in achieving compliance with NFPA 70E by concealing main power supply.
0.060 In. carbon steel
Enclosures are symmetrical for use with left or right hand disconnects
Removable continuous hinges
110 degree door stop prevents incidental contact with other components
Black quarter turn latch
Black spring loaded quarter turn latch with 7mm square insert and key
Latches automatically when door is closed
Gland plate top and bottom provides easy installation of wires
Mounting holes provided in back for securing to the sub-panel of main enclosure
Ground stud on door and body.
