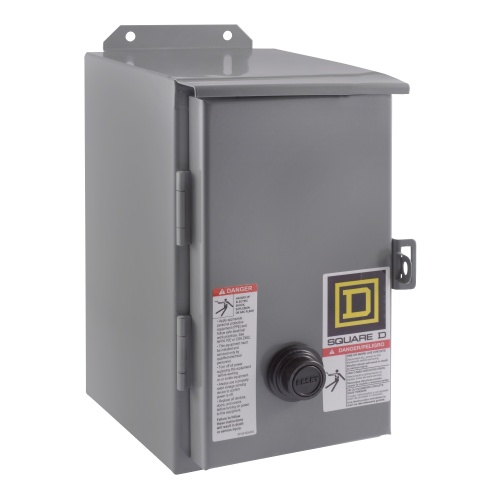

Schneider 8536SBA1V03 Square D Nema Motor Starter 240 VAC Coil 2 Poles
Normally In Stock
Code: 55654
Schneider 8536SBA1V03 Square D Nema Motor Starter 240 VAC Coil 2 Poles Size 0 18 Amp with NEMA 12 enclosure. Runs 1 HP @ 120 V Single Phase and 2 HP @ 230 V Single Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making futu
Condition: New
Usually ships Same Day or Next Day$690.12
Sale Price
$575.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider 8536SFG1V06A Square D Nema Motor Starter 480 VAC Coil 3 Poles Size 4 135 Amp with NEMA 1 enclosure. Runs 50 @ 240 V 3 Phase and 100 @ 480 V 3 Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making future fixes easy.
Specifications
Starter NEMA Size
0
Starter Coil Voltage
240 VAC
Starter Enclosure Type
NEMA 12
Starter Actions
Non-Reversing
Starter HP
1 HP @ 120 VAC 1 Phase
Starter HP
2 HP @230 VAC 1 Phase
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Non-Reversing Starters
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Poles
Two Pole
Starter Amperage
18 Amp
Manufacturer
Square D
Features
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors
Type S motor starters have ratings up to 810 amperes
This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating
This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC
This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control
A painted sheet steel NEMA 12/3R dusttight and driptight industrial use enclosure is used to protect this starter
Enclosure is 12.75 inches tall, 6.38 inches wide and 8.53 inches deep
A wide variety of accessories are available for Type S starters
Type S non-reversing NEMA motor starters are UL listed and CSA certified.
