Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 552459

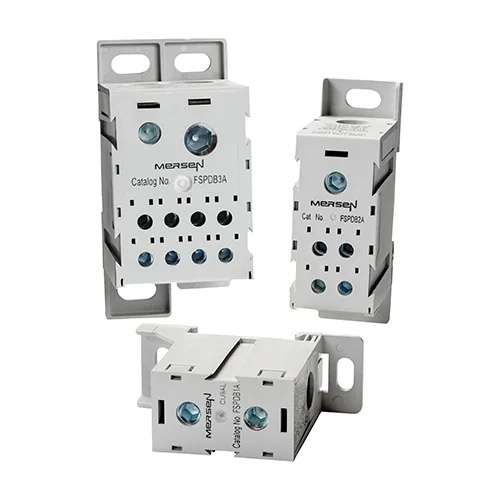

Mersen FSPDB3A Power Distribution Block, 600 Volts, 310 Amp
Normally In Stock
Mersen FSPDB3A - FSPDB Series UL 1059 Finger-Safe Power Distribution Block 600V 310A - 310A Tin-plated Aluminum 1-Pole 2 - 8 openings; 350 mcm 2/0 - #14 --- #2 - #14
Condition: New
Usually Ships Same Day or Next Day.$115.48
Sale Price
$96.23
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen FSPDB3A - FSPDBs introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger safe protection is achieved using the FSPDBs and thus eliminates the need for special covers or custom Plexiglas sheets to protect your panels. FSPDBs (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. And since they are modular, you can form any number of poles desired. If multi-pole panel mounting is desired, multiple-pole assembly pins are available. FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point.
Specifications
Terminal Block Voltage Rating
600 Volt
Terminal Block Amperage
310 Amp
Component
Power Distribution Block
Manufacturer
Mersen
Features
Finger-safe protection: Fully insulated block ensures touch safe isolation of live parts. Recessed termination screws and wire openings provide IP20 grade protection and qualify as “fingersafe” per IEC 529
Compact modularity: Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels
Snap on DIN-rail mounting: Sizes 1 to 4 feature integral DIN rail adaptors allowing for quick and easy installations on 35mm DIN rail yielding lower installed costs
Captive termination screws: Unique channel design ensures captive metric wire termination screws. Screws can never be lost
Available accessories: For multi-pole panel mounting, simply snap in pins for rigid fit. Cap plugs provide the ability to maintain touch safety on unused openings. Circuit identification markers simply snap into blocks to ID circuits. End anchors provide rigid end stops
Multiple wire ratings: Provide users more versatility by offering capability of using multiple conductors in #2 and 2/0 openings
AC & DC ratings: FSPDB1, 2, and 3 have been evaluated for use at 1500V (AC or DC) provided they are installed on DIN-rails only and with proper barriers and spacing between poles of opposite polarity
