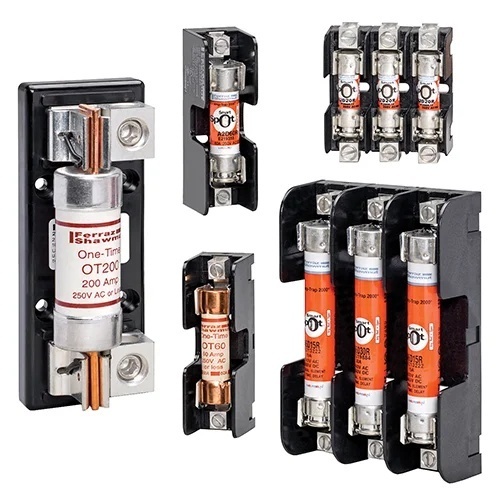

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 551075
Mersen 20315R Fuse Holder, Class R, 250 Volts, 30 Amp
Normally In Stock
Mersen 20315R - Fuse Block 250VAC 250VDC Class R 30A Adder Screw with Reinforced Clip
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$15.31
Sale Price
$12.76
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen 20315R - Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired.All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
Specifications
Fuse Amperage Rating
30 Amp
Manufacturer
Mersen
Fuse Type (UL)
Class R
Component
Fuse Holder
Body/Insulating Material
GFPC
Mounting
Screw
Fuse Voltage Rating
250 Volt
Features
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses
A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire
Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V
30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired
All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A
Clips 100A and above are spring reinforced.
