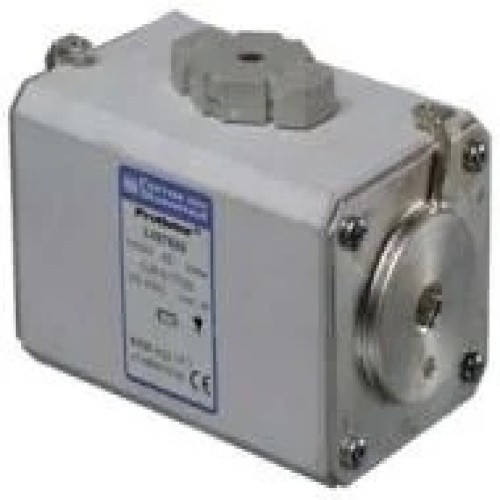

Mersen E076157 Fuse - Class aR, 1500 Volts, 350 Amp
Normally In Stock
Code: 550193
Mersen E076157 - High performance square body fuse-link Protistor® Size 91 aR 1500VAC IEC 350A With Striker Flush ends metric threads
Condition: New
Usually Ships Same Day or Next Day.$1338.18
Sale Price
$1115.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen E076157 - Mersen 1500 V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These square body fuse-links are available in three different body sizes, each size having four worldwide acceptable mounting styles. The different mounting styles and body sizes along with a broad range of ampere ratings allow greatest flexibility in equipment design.The Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR’s, diodes, thyristors, GTO’s and IGBT devices. They have pure silver die-cut elements embedded in solidified sand which helps control arcing characteristics for low I²t and high breaking capacity. All contact surfaces are silver plated and all hardware is non-magnetic.All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly on to the fuse even while in service.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
350 Amp
Component
Fuse
Fuse Type (UL)
Class Ar
Mounting
Bolted
Connection/Terminal Material
Silver-Plated Brass
Body/Insulating Material
Ceramic
Indication System Type
Striker
Connection/Terminal Type
End Contact With Threaded Holes
Fuse Voltage Rating
1500 Volt
Series
Protistor
Features
Extremely fast acting
Current limiting
Very low l²t
Worldwide acceptability
Superior cycling ability
Choice of mounting styles
Broad range of ampere rating
