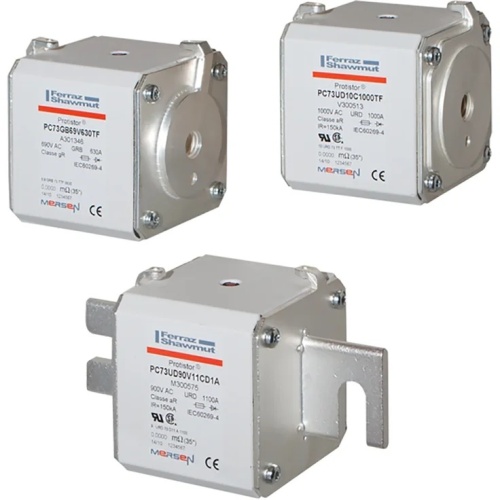

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Mersen G301352 Fuse - Class gR, 690 Volts, 630 Amp
Normally In Stock
Code: 550185
Mersen G301352 - Square Body High-Speed Fuse Protistor® Size 73 gR 690VAC IEC 630A With Striker Open Slot Blades
Condition: New
Usually Ships Same Day or Next Day.$1556.87
Sale Price
$1297.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen G301352 - The 690V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.The Protistor® gR have been engineered to provide full range protection to eliminate all overloads and short circuit fault. Each fuse is assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Manufacturer
Mersen
Component
Fuse
Fuse Amperage Rating
630 Amp
Fuse Type (UL)
Class Gr
Mounting
Bolted
Connection/Terminal Material
Silver-Plated Copper
Body/Insulating Material
Ceramic
Indication System Type
Striker
Series
Protistor
Fuse Voltage Rating
690 Volt
Connection/Terminal Type
Open Slot Blade
Features
Excellent cycling capability
Multiple body sizes and terminals or blades combination
Extremely fast acting
Eliminate all overloads
Low I²t for improved semiconductor protection
gR Class according to IEC 60269-4 and VDE 636-23
