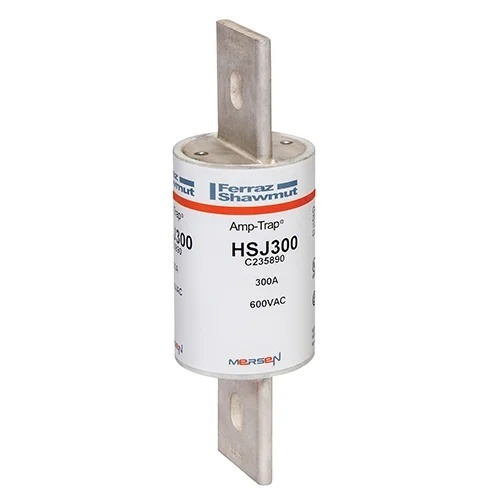

Mersen HSJ300 Fuse - Class J, 600 Volts, 300 Amp
Normally In Stock
Code: 548818
Mersen HSJ300 - Fuse HSJ - Class J - High-Speed 600VAC 500VDC 300A Blade Amp-Trap®
Condition: New
Usually Ships Same Day or Next Day.$685.91
Sale Price
$571.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen HSJ300 - The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class J
Manufacturer
Mersen
Fuse Amperage Rating
300 Amp
Component
Fuse
Body/Insulating Material
GMG
Connection/Terminal Type
Blade
Mounting
Clip
Connection/Terminal Material
Brass
Features
Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
Low I2t (low thermal energy)
Excellent cycling ability for frequent starts/stops without nuisance opening
