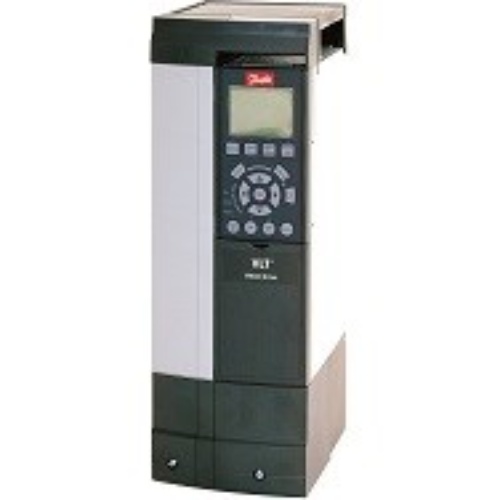

Danfoss 131F8616 FC 202 Aqua Drive VFD Drive 480 Volt Three Phase 5 HP 8.2 Amp
Normally In Stock
Code: 52769
Danfoss 131F8616 FC 202 Aqua Drive VFD Drive 480 Volt Three Phase Input and output voltage 5 HP 8.2 Amp. The Danfoss FC 202 Aqua Drive is a direct replacement for the FC 322. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships in 7 days.$1998.34
Sale Price
$1665.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Danfoss FC-202P4K0T4E21H2XGXXXXSXXXXAXBXCXXXXDX Danfoss 131F8616 FC 202 Aqua Drive VFD Drive 480 Volt Three Phase Input and output voltage 5 HP 8.2 Amp. The Danfoss FC 202 Aqua Drive is a direct replacement for the FC 322. Danfoss VLT Aqua Drive FC 202 Variable Frequency Drive gives you maximum energy efficiency designed for the highest level of performance in water and wastewater variable torque applications. This new generation VLT AQUA Drive can realistically give you a first-year cost savings of between 10–30% compared to traditional drive solutions. Quick and user-friendly setup reduces installation time. Fast way to maximum energy efficiency and motor control. Configuration is reduced significantly by collecting the most important parameters in one place with less errors. The VLT AQUA Drive the perfect match for Industrial VT applications including fans, pumps, blowers, and compressors. Protection of assets thanks to specially designed software that prevents water hammering and other important challenges. High energy savings with air conditioning are ensured because of our unique back-channel-cooling concept that transfers 90% of heat away from the room and algorithms and design which focus on reducing heat loss.
Specifications
Drive Type
VLT
VFD Torque
Variable Torque
VFD Application
Centrifugal Pump
VFD Application
Fan
VFD Application
Blower
VFD Horsepower Output
5 HP
VFD Frame Type
A2
VFD Amperage Output
8.2 Amp
Manufacturer
Danfoss
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD Line
FC 202 Aqua Drive
VFD NEMA-IP Rating
IP21 NEMA 1
Features
VLT® AQUA Drive FC-202
(P4K0) 4.0 KW / 5.0 HP,
Three phase, 380 - 480 VAC,IP21 / Type 1
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: A2
No A Option, No B Option
No C1 option, No D option
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewaterapplications
With a wide range of powerful standard and optionalfeatures, the VLT® AQUA Drive provides the lowest overall cost ofownership for water and wastewater applications
