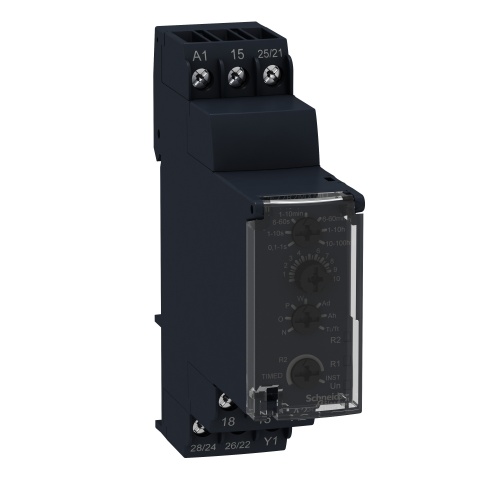

Schneider RE22R2MMW Zelio Time Delay Relay 12-240 VAC/DC 0.1 s-100 h Multifunction
Normally In Stock
Code: 52517
Schneider RE22R2MMW Zelio Time Delay Relay 12-240 VAC/DC 0.1 s-100 h Multifunction 1 NO/NC timed contact, 1 NO/NC timed or instantaneous contact 8 Amp
Condition: New
Usually ships Same Day or Next Day$104.10
Sale Price
$86.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider RE22R2MMW Zelio Time Delay Relay 12-240 VAC/DC 0.1 s-100 h Multifunction 1 NO/NC timed contact, 1 NO/NC timed or instantaneous contact 8 Amp. This relay is built to time events in automated industrial systems.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Manufacturer
Schneider Electric
Line
Zelio
Component
Timer Relay
Relay Load Amperage
8 Amp
Coil Voltage Rating
12-240 Volt
Features
Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
Wide range of time delay for adjustment: from 0.01 s to 999 hrs
Compatible with a wide range of applications including machines, buildings, water segments, and HVAC
