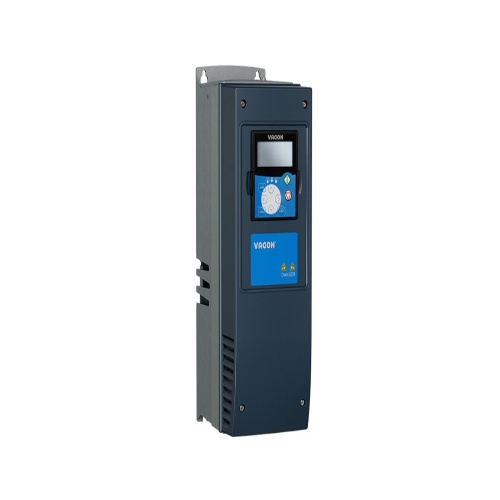

Danfoss Vacon 136H8941 VACON NXP Series 600 Volt 4.5 Amp 2 HP
Normally In Stock
Code: 52465
Danfoss Vacon NXP00046-A2L0SSS-A1A2000000 VACON NXP Series 600 Volt Three Phase input and output, 4.5 Amp 2 HP Constant Torque with enclosure IP-21 NEMA 1. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships in 7 days.$3110.59
Sale Price
$2592.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Vacon NXP02615-A5H0SSF-A1A2000000 VACON NXP Series 460 Volt Three Phase 261 Amp 200 HP Constant Torque. AC vfd drive for heavy use in all branches of industry, buildings, and machines like conveyors, compressors, pumps and multi-pumps. Flexible I/O selection withb five slots for I/O boards and a suitable can be used for each slot. No fixed inputs or outputs in the drive. Simplified programming for easy commissionning with seven built-in application packages.
Specifications
VFD Torque
Constant Torque
VFD Application
Compressor
VFD Application
Conveyor
VFD Application
Positive Displacement Pump
VFD Application
Mixer
VFD Application
Hoist
VFD Application
Traction Drive
VFD Horsepower Output
2 HP
Drive Type
Basic
VFD Frame Type
FR6
VFD Amperage Output
4.5 Amp
Manufacturer
Danfoss
VFD Input Voltage
600 Volt Three Phase
VFD Output Voltage
600 Volt Three Phase
VFD Line
VACON NXP
VFD NEMA-IP Rating
IP21 NEMA 1
Features
Full power and voltage range from 0.75 HP to 2250 HP for both induction and permanent magnet motors.
Extensive range of ready-to-use applications for basic to demanding needs.
Create your own applications with VACON® Programming tool (licensed software tool).
Five built-in expansion slots for additional I/O, fieldbus and functional safety boards.
Same software tools, same control and option boards allowing the maximum utilisation of VACON NXP features over a wide power range.
No additional software engineering required, saving time and money
Customized applications provide added flexibility to meet process requirements.
No additional external modules required. Options boards are compact and easy to install at any time.
