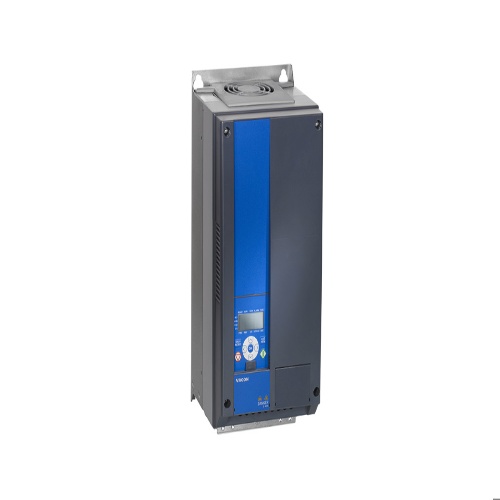

Danfoss Vacon 135N2141 VACON 20 Series 240 Volt 17.5 Amp 5 HP
Normally In Stock
Code: 51900
Danfoss Vacon VACON0020-3L-0017-2-R02 VACON 20 Series 240 Volt Three Phase input and output, 17.5 Amp 5 HP Constant Torque with enclosure IP-20. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships in 7 days.$1316.90
Sale Price
$1097.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Vacon VACON0020-3L-0011-2-R02 VACON 20 Series 240 Volt Three Phase 11 Amp 3 HP Constant Torque. Extremely compact varaiable AC drive with built-in functionality for enhanced control. Built-in RS-485 interface provides a simple serial-control interface for the drive at a cost-effective proce. Easy-access terminals, integral DIN rail mounting and the parameter copying tool which can clone settings without needing mains power and parameter list can be freely modified allow for fast installation. Individual control logic can be built into the drive. Unused I/O options can also be used for other machine-related tasks. Simple serial-control interface built in with RS-485. Optional modules can connect to Ethernet. Unique passive cooling system with optimized performance.
Specifications
VFD Torque
Constant Torque
VFD Application
Compressor
VFD Application
Conveyor
VFD Application
Positive Displacement Pump
VFD Application
Mixer
VFD Application
Hoist
VFD Application
Traction Drive
VFD Frame Type
MI4
VFD Amperage Output
17.5 Amp
VFD Horsepower Output
5 HP
Manufacturer
Danfoss
VFD Input Voltage
240 Volt Three Phase
VFD Output Voltage
240 Volt Three Phase
VFD NEMA-IP Rating
IP20
VFD Line
VACON 20
Features
The VACON® 20 AC drive comes packed with functionality and possibilities to bring any machine control to a completely new level.
The compact size in combination with a wide power range is the base, but the VACON® 20’s possibilities do not end there. A built-in PLC functionality, which is one of the most flexible on the market, makes this product adapt to every task and bring cost savings to the user.
The VACON® 20 is available in all common voltages in the range of 105-600 V. Combined with a wide power range up to 18.5 kW /25 HP. The VACON® 20 has something for customers all over the globe.
The VACON® 20 is designed for efficient volume manufacturing where every second in installation and configuration time counts. Easy access terminals, built-in DIN rail mounting and the MCA parameter copying tool which can clone settings without main power in the drive are all examples of features that help reduce start-up time.
The built-in PLC functionality presents an opportunity to increase machine performance and save costs. The customer can build his own control logic in the drive and utilize unused I/O of the drive for performing other machine related tasks.
. Another unique feature of the VACON® 20 is that the parameter list can be freely modified and application specific parameter sets and default settings can be created. By utilizing the opportunities of optimizing the drive control VACON® 20 can help make better and more cost efficient machine designs.
