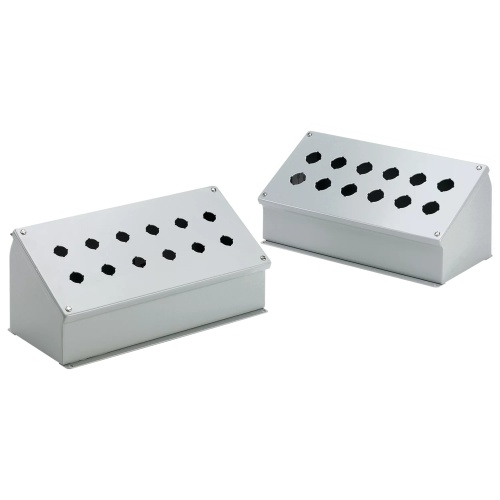

nVent Hoffman E2PBAM Steel 22.5mm Slope Top Push Button Enclosure
Normally In Stock
Code: 5115
nVent Hoffman E2PBAM 3.5" x 5.5" x 5" Type 12,Type 13 Indoor 2 Hole 22.5-mm Sloped Front Push Button Gray Steel Enclosure (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$228.41
Sale Price
$190.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman E2PBAM Steel 22.5mm Slope Top Push Button Enclosure Sloped Front 22.5-mm Pushbutton Enclosure where slanted control surfaces are preferred. Type 12 for indoor use are designed to hold 22.5-mm 4-way pushbuttons and switches. No welded seams or sharp corners.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
5"
Enclosure Interior Color
Gray
Enclosure Composition
Painted Steel
Enclosure Door Type
Pushbutton 22.5 mm
Enclosure Height
3.5"
Component
Push Button Enclosure
Enclosure Environment Rating
Indoor
Enclosure Latch Type
Screw
Enclosure Width
5.5"
Push Button Number
2
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Oil-resistant gasket
Grounding stud on body
Bonding provision on cover
Factory stamped 4-way pushbutton holes
Captivated cover screws thread into sealed wells
Seams continuously welded and ground smooth
Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
30.5-mm or 22.5-mm size holes
External welded-on mounting brackets for easy installation
