Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

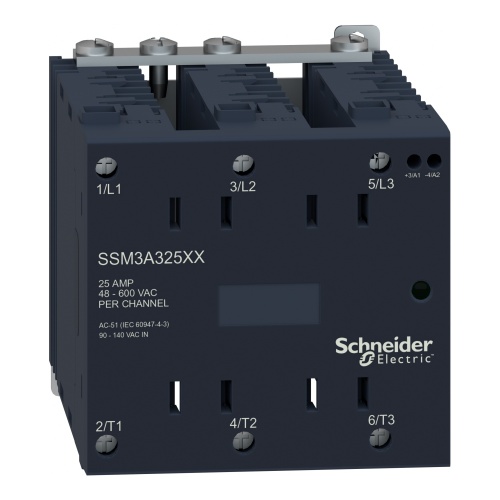

Schneider SSM3A325F7 Zelio Solid State SSM relay Zero Voltage Switching 90 VAC Three Pole Single Throw NO
Normally In Stock
Code: 50957
Schneider SSM3A325F7 Zelio Solid State SSM relay Zero Voltage Switching 90 VAC-140 VAC coil voltage Three Pole Single Throw NO 25 Amp @ 600 VAC Three Phases 480 VAC-600 VAC Load voltage Din Rail mount
Condition: New
Usually ships Same Day or Next Day$172.74
Sale Price
$143.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider SSM3A325F7 Zelio Solid State SSM relay with Zero Voltage Switching is an innovative and reliable solid state relay. This relay uses 90 VAC-140 VAC coil voltage and has Three Pole Single Throw NO functionality. Has a load rated current of 25 Amp @ 600 VAC Three Phases and runs 480 VAC-600 VAC Load voltage and is Din Rail mounted.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Relay Switching
Zero Voltage Switching
Relay Indication
LED Green Status
Relay Poles
Three Pole
Component
Relay Module-Solid State
Manufacturer
Schneider Electric
Line
Zelio
Relay Throws
Single Throw Normally Open
Coil Voltage Rating
90 Volt
Relay Load Voltage AC Rating
600 Volt
Coil Voltage Max
140 Volt
Relay Load Amperage
25 Amp @ 600 Volt
Relay Load Voltage AC Phase
Three Phase
Features
Built-in heatsink for maximum performance and less spare parts to manage
Silent and reliable due to the absence of moving contacts
Resistant to shocks, vibration and pollution, which makes it ideal for harsh industrial environments
