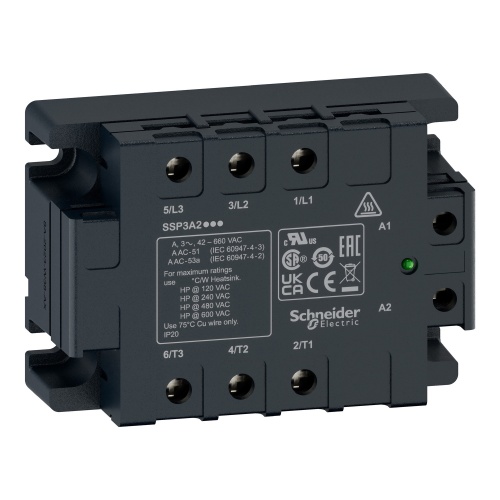

Schneider SSP3A225BDT Zelio Solid State SSP relay Zero Voltage Switching 4 VDC Three Pole Single Throw NO
Normally In Stock
Code: 50885
Schneider SSP3A225BDT Zelio Solid State SSP relay Zero Voltage Switching 4 VDC-32 VDC coil voltage Three Pole Single Throw NO 25 Amp @ 530 VAC Three Phases 48 VAC-530 VAC Load voltage Panel mount
Condition: New
Usually ships Same Day or Next Day$198.07
Sale Price
$165.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider SSP3A225BDT Zelio Solid State SSP relay with Zero Voltage Switching is an innovative and reliable solid state relay. This relay uses 4 VDC-32 VDC coil voltage and has Three Pole Single Throw NO functionality. Has a load rated current of 25 Amp @ 530 VAC Three Phases and runs 48 VAC-530 VAC Load voltage and is Panel mounted.
Specifications
Relay Connection Type
Screw Connection
Relay Mounting
Panel
Relay Switching
Zero Voltage Switching
Relay Poles
Three Pole
Component
Relay Module-Solid State
Manufacturer
Schneider Electric
Line
Zelio
Relay Throws
Single Throw Normally Open
Coil Voltage Max
32 Volt
Relay Load Voltage AC Rating
530 Volt
Relay Load Amperage
25 Amp @ 530 Volt
Relay Load Voltage AC Phase
Three Phase
Coil Voltage Rating
4-6 Volt
Features

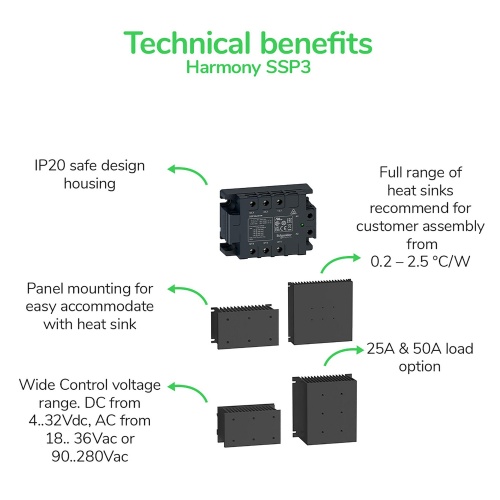

This Harmony SSP solid state panel mount 3-phase relay is rated 25A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 530V AC with zero voltage switching, ideal for resistive loads
It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events
It also has a test button for easy debugging, testing and commissioning
It is also silent and reliable thanks to the absence of moving contacts.
