Code: 50877

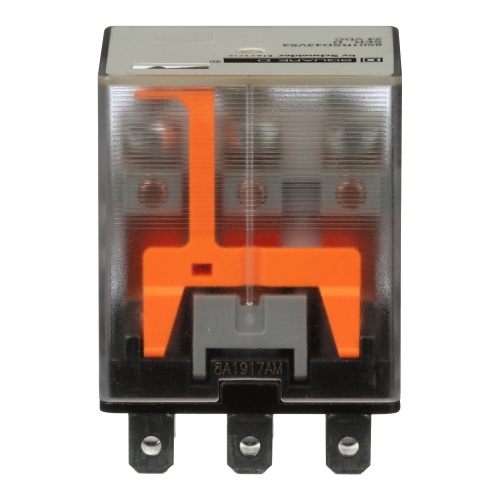

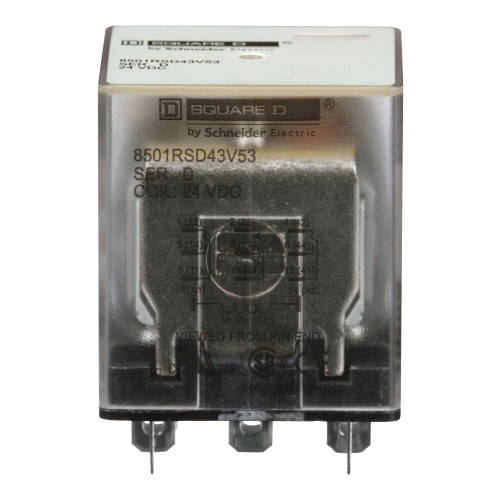

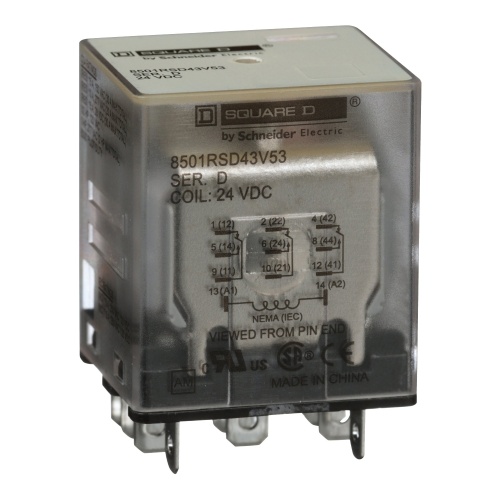

Schneider Electric 8501RSD43V53 R type plug in relay 10 Amp Three Pole 24 VDC coil No Indicator
Normally In Stock
Schneider Electric 8501RSD43V53 R type plug in relay 10 Amp Three Pole 24 VDC coil No Indicator
Condition: New
Usually ships Same Day or Next Day$67.48
Sale Price
$56.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric 8501RSD43V53 R type plug in relay 10 Amp Three Pole 24 VDC coil No Indicator. This relay is made for logic elements and power switching devices. The armature of the relay is designed with a short stroke motion to allow for a long mechanical life of high speed operation. Is rated for 0.5 hp @ 120 VAC 1 hp @ 277 VAC motor load.
Specifications
Relay Throws
Double Throw
Relay Connection Type
Screw Connection
Relay Indication
No Indicator
Relay Mounting
Socket
Relay Poles
Three Pole
Component
Relay Plug-In-Electromagnetic
Manufacturer
Schneider Electric
Relay Load Amperage
10 Amp
Coil Voltage Rating
12-24 Volt
Relay Load Voltage AC Rating
300 Volt
Relay Load Voltage AC Phase
Single Phase
Features
8501RS miniature plug in relays are designed for control circuit logic applications
These relays are designed to be plugged into a relay socket
This makes for very easy replacement
This relay plugs into an 8501NR43 or 8501NR43B relay socket
Relay is available with 3PDT contact arrangements
It has three normally open and three normally closed contact

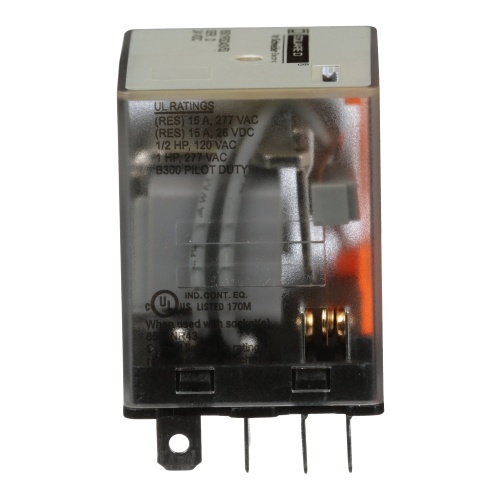

The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating
Relays can be ordered with a wide variety of coil voltages
This relay has a 24 VDC nonreplaceable coil
Relay does not have a green LED indicator
8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
