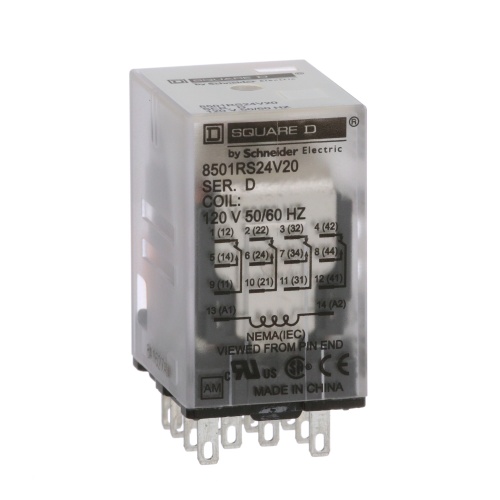

Schneider Electric 8501RS24V20 R type plug in relay 1 Amp Four Pole 120 VAC coil No Indicator
Normally In Stock
Code: 50808
Schneider Electric 8501RS24V20 R type plug in relay 1 Amp Four Pole 120 VAC coil No Indicator
Condition: New
Usually ships Same Day or Next Day$89.32
Sale Price
$74.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric 8501RS24V20 R type plug in relay 1 Amp Four Pole 120 VAC coil No Indicator. This relay is made for logic elements and power switching devices. The armature of the relay is designed with a short stroke motion to allow for a long mechanical life of high speed operation. Is rated for 0.167 hp @ 120 VAC motor load.
Specifications
Relay Throws
Double Throw
Relay Connection Type
Screw Connection
Relay Indication
No Indicator
Relay Mounting
Socket
Relay Poles
Four Pole
Component
Relay Plug-In-Electromagnetic
Manufacturer
Schneider Electric
Relay Load Amperage
1 Amp
Relay Load Voltage AC Rating
300 Volt
Coil Voltage Rating
110-127 Volt
Relay Load Voltage AC Phase
Single Phase
Features
8501R relays are suited for use as logic elements and power switching output devices.
The short stroke motion of the armature provides long mechanical life for high speed operation of control systems.
Horsepower rated, 4PDT composition, and 1, 3, or 5 Ampere versions available.
