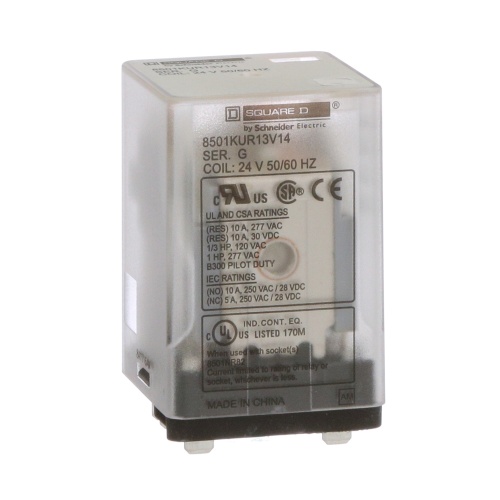

Schneider Electric 8501KUR13V14 K type plug in relay Three Pole 24 VAC coil Socket mount
Normally In Stock
Code: 50792
Schneider Electric 8501KUR13V14 K type plug in relay 10 A @ 240 VAC Three Pole 24 VAC coil No Indicator Socket mount
Condition: New
Usually ships Same Day or Next Day$43.48
Sale Price
$36.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric 8501KUR13V14 K type plug in relay 10 A @ 240 VAC Three Pole 24 VAC coil No Indicator Socket mount. This relay have standard pin and wiring configurations and are designed for multi-pole switching applications. Have 1 hp @ 277 VAC and 0.33 hp @ 120 VAC motor load ratings.
Specifications
Relay Throws
Double Throw
Relay Connection Type
Screw Connection
Relay Indication
No Indicator
Relay Mounting
Socket
Relay Poles
Three Pole
Component
Relay Plug-In-Electromagnetic
Manufacturer
Schneider Electric
Coil Voltage Rating
12-24 Volt
Relay Load Voltage AC Rating
300 Volt
Relay Load Amperage
10 Amp @ 240 Volt
Relay Load Amperage
15 Amp @ 120 Volt
Relay Load Amperage
10 Amp @ 28 Volt
Relay Load Voltage AC Phase
Single Phase
Features
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower
These relays are designed to be plugged into a relay socket
This makes for very easy replacement
This relay plugs into an 851NR82 relay socket
This relay has a 3PDT contact arrangements
It has three normally open and three normally closed contacts
The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating
Relays can be ordered with a wide variety of coil voltages
This relay has a 24 VAC nonreplaceable coil
A green LED indicator is not supplied on this relay
8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
