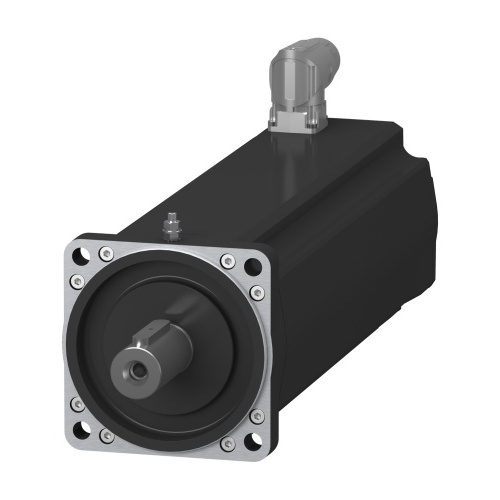

Schneider Electric SH31004P1AF4100 is a three-phase motor with a power output of 1490W (230V), 2480W (400V), or 2480W (480V). It features a peak stall torque of 358.45 lbf.in (40.5 N.m) and a continuous stall torque of 88.51 lbf.in (10 N.m). With a maximum mechanical speed of 6000 rpm, it is designed for natural convection cooling and is equipped with a holding brake. The motor has a straight connector electrical connection, a shaft with a diameter of 0.94 in (24 mm), and a rotor inertia of 5.245 kg.cm². It has a compact size with a length of 12.11 in (307.5 mm) and a motor flange size of 3.94 in (100 mm). The motor also features a centring collar with a diameter of 3.74 in (95 mm) and a depth of 0.14 in (3.5 mm). It has a maximum radial force of 145 N at 1000 rpm, 115 N at 2000 rpm, and 100 N at 3000 rpm. The motor is equipped with a holding torque of 106.21 lbf.in (12 N.m) and has a maximum axial force of 20 N. It has a nominal torque of 84.08 lbf.in (9.5 N.m) (230V), 69.92 lbf.in (7.9 N.m) (400V), and 61.07 lbf.in (6.9 N.m) (480V). The motor has a stator resistance of 1.8 Ohm, a stator inductance of 13 mH, and a torque constant of 1.62 N.m/A. It has four motor poles and a speed feedback resolution of 262144 points/turn. The motor has a continuous power of 2500W and is equipped with an absolute single turn Hiperface DSL encoder. It has a mounting hole configuration of 4 holes with a diameter of 0.35 in (9.0 mm). The product does not have returnability.
