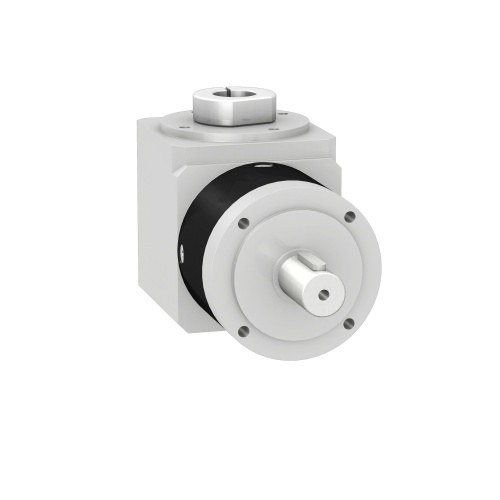

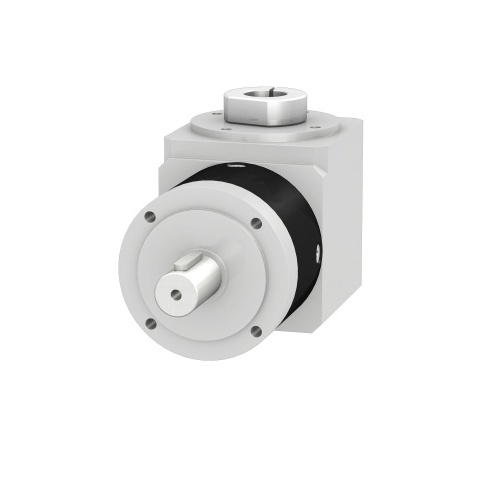

Schneider Electric GBY080005K,Returnability: Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*,Radial Force (Fr): 650 N at 100 rpm, applied at mid-distance from output shaft during 30,000 hours at 30 °C,Axial Force (Fa): 1200 N at 100 rpm, during 30,000 hours at 30 °C,Package Type: S03,Product Compatibility: BMI 2.76 in (70 mm), 2,BMI 2.76 in (70 mm), 3,BMH 2.76 in (70 mm), 3,BSH 2.76 in (70 mm), 3,BMH 3.94 in (100 mm), 1,BMH 3.94 in (100 mm), 2,BSH 3.94 in (100 mm), 1,BSH 3.94 in (100 mm), 2,BRS3,ILS 3.35 in (85 mm), 1,ILS 3.35 in (85 mm), 2,ILS 3.35 in (85 mm), 3,SH3,MH3,ILM,Range Compatibility: Lexium 32,Lexium SD3,Lexium 32i,Lexium 62 ILM,Lexium 62,Lexium ILS,Lexium 52,IP Degree of Protection: IP54 for shaft output,Product Type: Angular planetary gearbox,Net Weight: 9.70 lb(US) (4.4 kg),Additional Information: Lubricated for life, Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*ise level: 73 dB at 1 m, no-load,Gear Box Type: Straight teeth,Service Life: 30,000 hours at 100 rpm, 86 °F (30 °C),Efficiency: 94%,Mounting Position: Any position,Housing Material: Black anodized aluminium,Housing Color: Black,Ambient Temperature: -13…194 °F (-25…90 °C) for operation,Maximum Output Torque: 947.03 lbf.in (107 N.m) at 100 rpm, 86 °F (30 °C),Shaft Material: C 45,Torsional Rigidity: 6 N.m/arcmin,Reduction Ratio: 5:1,Continuous Output Torque: 593.00 lbf.in (67 N.m) at 100 rpm, 86 °F (30 °C),Input Diameter: 0.75 in (19.0 mm),Moment of Inertia: 0.869 kg.cm²,Gearbox External Diameter: 3.15 in (80 mm),Maximum Torsional Backlash: 13 arc.min
