Code: 495389

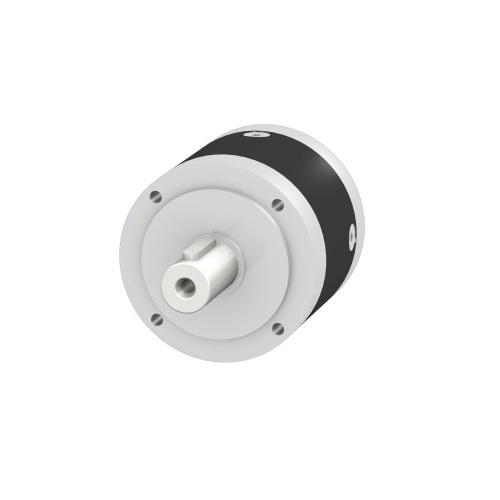

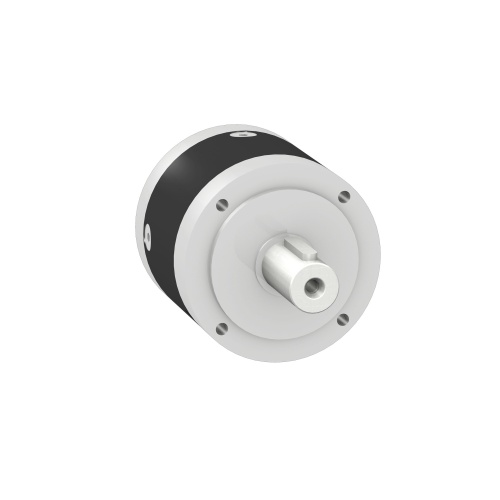

Schneider Electric GBX080040K gearbox straight teeth GBX, Lexium, 80mm, reduction 40:1 , 9arc.min, 110N.m
Normally In Stock
Schneider Electric GBX080040K gearbox straight teeth GBX, Lexium, 80mm, reduction 40:1 , 9arc.min, 110N.m
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1606.60
Sale Price
$1338.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric GBX080040K is a planetary gearbox with a maximum output torque of 1557.73 lbf.in and a continuous output torque of 973.58 lbf.in. It has a reduction ratio of 40:1 and an efficiency of 94%. The gearbox is lubricated for life and has a service life of 30000 hours. It is compatible with various Lexium motor ranges and has an IP54 degree of protection. The housing is made of black anodized aluminium and the shaft is made of C 45. The gearbox is suitable for any mounting position.
Specifications
Manufacturer
Schneider Electric
Component
Gearbox
Features
Excellent constant velocity characteristics
High torque available at low speed
Particularly suitable for short-distance positioning
Lexium SD3 require very little space in the control cabinet
