Code: 495388

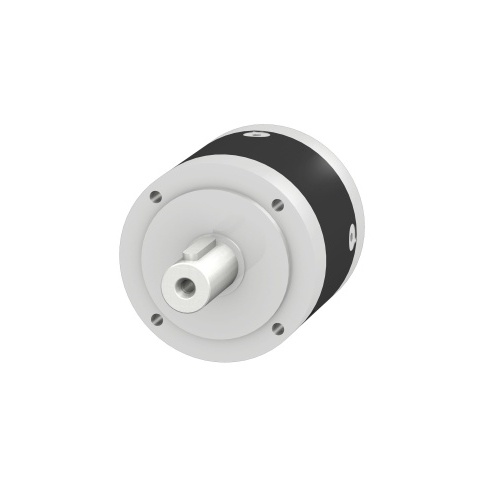

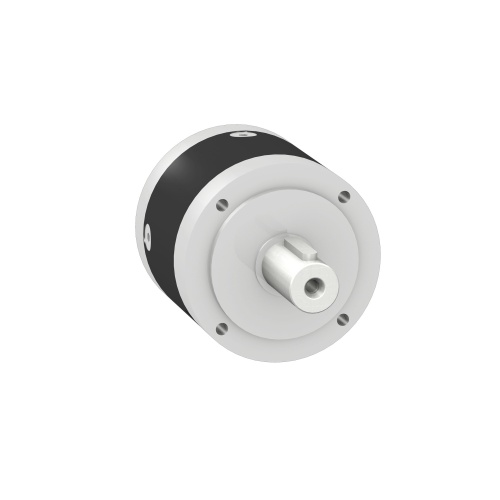

Schneider Electric GBX060012K gearbox straight teeth GBX, Lexium, Ø 60mm, reduction 12:1 , 12 arc.min, 44N.m
Normally In Stock
Schneider Electric GBX060012K gearbox straight teeth GBX, Lexium, Ø 60mm, reduction 12:1 , 12 arc.min, 44N.m
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1191.67
Sale Price
$993.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric GBX060012K Planetary Gearbox is a high-performance and durable component designed for use with Lexium ILE, ILA, ILS, 62, 32, 62 ILM, 28, 52, and SD3 range motors. It offers a maximum radial force of 340 N and maximum axial force of 450 N, ensuring reliable operation. With a reduction ratio of 12:1 and continuous output torque of 389.43 lbf.in, it delivers efficient performance. The gearbox features a straight teeth design and an IP54 degree of protection, making it suitable for various environments. Its black anodized aluminium housing ensures durability, while the C 45 shaft material guarantees torsional rigidity.
Specifications
Manufacturer
Schneider Electric
Component
Gearbox
Features
This product is part of the Lexium range, an offer of motion servo drives and servo motors
This planetary gearbox has straight teeth, lubricated for life
The gearbox external diameter is 60mm
It is a gearbox with a reduction ratio of 12/1, maximum axial force (Fa) of 450N at 100RPM and continuous output torque of 44N.m at 100RPM at 30°C
It offers service life of about 30000h at 100RPM at 30°C
It is an IP54 rated product
The enclosure is made of black anodized aluminium
It weighs 1.1kg
This product is compatible with servo motors and Lexium servo drives
It can be mounted in any position
The SD3 is an universally applicable stepper motor drive
The package is ready for operation within a very short period of time
Connect the stepper motor to the drive, set the current and step resolution
Stepper drives and stepper motors for motion control.
